The detector comprises a telescopic tube, two probe-antennae which transmit and receive the magnetic field are mounted at the ends of the extensions. Target indication is by a high-readability colour LCD display on the front panel of the control unit and an acoustic warning signal with adjustable volume control. The embedded GPS receiver allows data logging capability in real time during operations: GPS information (Date, Time, Latitude, Longitude) can be recorded together with significant points and data is stored into a non-volatile memory at a rate of one event per second.

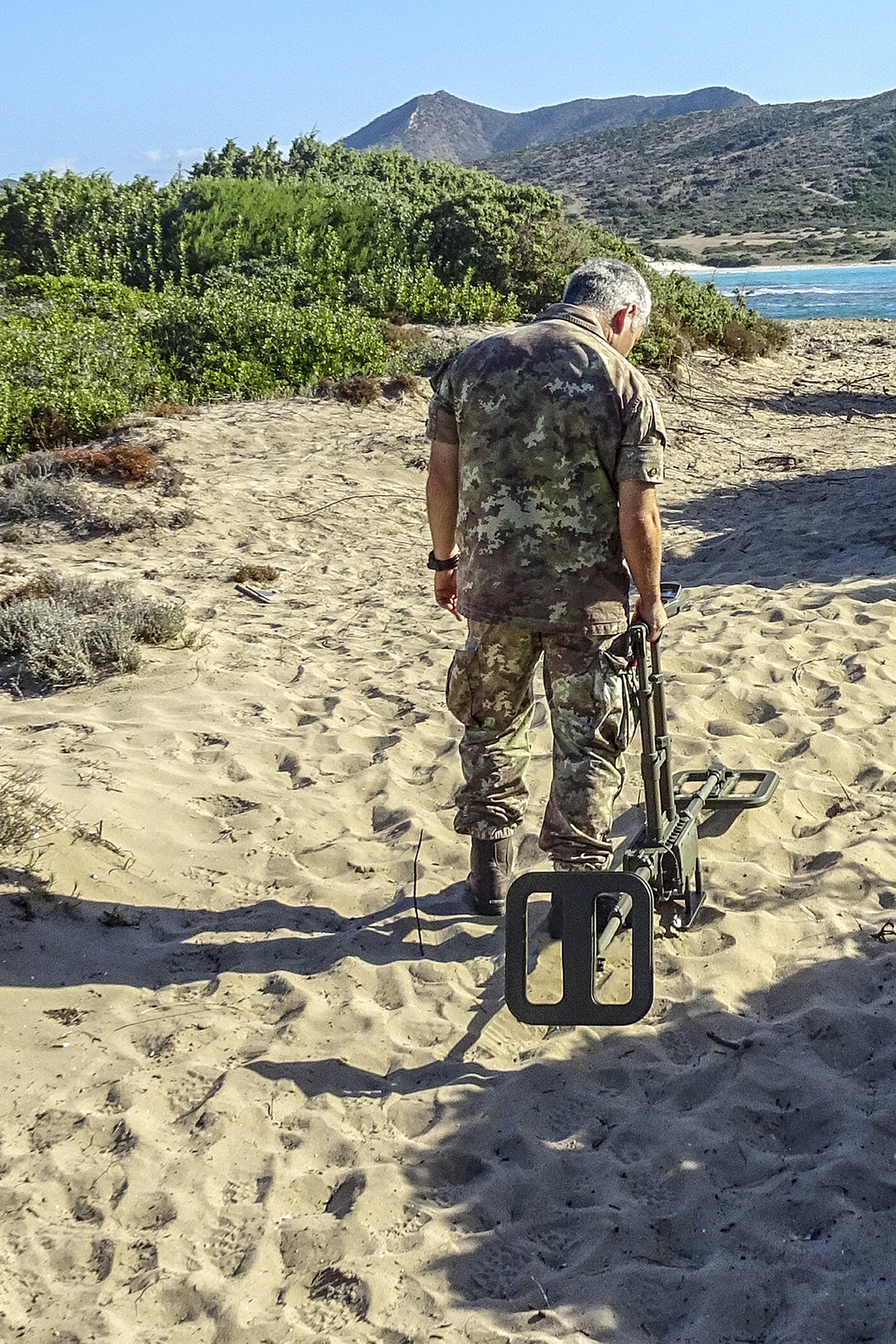

The CEIA DSMD deep search ground search metal detector is an active electromagnetic induction (EMI) device based on the transmission of an alternated, low frequency magnetic field and the reception of the variations introduced in the magnetic field by buried metal masses. It is designed for the accurate detection of deeply buried large metal masses, including unexploded ordnance, whilst discriminating against ground magnetic anomalies.


Visual display high-readability colour LCD display on the front panel of the control unit
Sensitive adjustment 1
Ground balance 1

Battery 3 rechargeable Ni-MH 1.2V cells, ANSI size D or IEC size HR20 format
Low battery alert 1
Rechargeable 1
Operating time 10 hours
Operating time information battery charger integrated - Charge cycles: 2 years of daily use ( > 500 cycles, IEC standards)
Battery charger provided 1
Battery charger information integrated - Charging time: about 5 hours (at 20o C).

Length 1670 mm
Weight 6.2 kg
Search head size 300 mm
Shape square
Transport case provided 1
Transport case weight 6.2 kg
Transport case weight info case only

Factory support worldwide support
Humidity (limitations) no limitations
Water resistant 1
Temperature limitations IP55; antenna IP68
