General description

The Armtrac 100-350 Mk2 is a cost effective, heavily modified & armoured to STANAG 4569 Level 1, multi-purpose C-IED/demining machine & is built around the tried & tested JCB Fastrac 8000 tractor. As such, many of the components and spare parts are obtainable worldwide. It can operate as a Route Proving and Clearance vehicle and a Bomb Search & Detection vehicle.

Working characteristics

The Armtrac 100-350 Mk2 features a similar 3m Tiller and Flail Header as the Armtrac 400, driven from the PTO shaft at the rear of the tractor. All key components are armour protected & shielded and the tyres are foam filled. The Tiller and Flail is capable of cutting thick vegetation while simultaneously processing ground to a depth of 40cm. The Armtrac 100-350 Mk2 has an armoured cabin for direct control operations but it can also be remote controlled. The cabin is quiet, air-conditioned & features a fully adjustable air-sprung seat with a 4-point safety harness, adding to its comfort & safety. A special feature of this C-IED/demining machine is its ability to operate toolkits on the front and the rear; the operator’s seat can swivel through 180 degrees so that the operator can always face the direction of travel using the respective toolkit on the front or rear of the machine. Route Proving and Clearance. There are many different demining, C-IED and engineering toolkits that can be employed with the Armtrac 100 – 350 Mk2 as well as tillers and flails. For route proving and clearance, the Armtrac C-IED Mine Roller System can be mounted on the front with either a tiller/flail on the rear in the event that the roller initiates a victim operated device.


Dimensional data

Overall length 5400 mm
Overall Width 2550 mm
Overall Hight 3000 mm
Fits in container 1

Factory support data

Factory support Armtrac will 1. Provide training for operation and maintenance 2. Provide an engineer to maintain larger Armtrac fleets 3. Supply follow up spares quickly and efficiently.
Warranty 12 months standard


Other models A100-350 Mk1
Estimated quantity in use to date 20

Operational data

Wheels 1
Rotation speed from 350 rpm
Rotation speed to 400 rpm
Clearance depth in varying terrain from 20 cm
Clearance depth in varying terrain to 35 cm
Working speed for light soil with medium vegetation 2100 m2/h
Working speed for medium soil with medium vegetation 1700 m2/h
Working speed for heavy soil with dense vegetation 1200 m2/h
Armor Armox 500
Greatest remote controlled distance 400 m
Mechanical tools / attachments Tiller Flail Rotary Mine Comb C-IED Mine Roller System Ground Probing Radar (GPR) Front Loading bucket Excavator Robotic Arm with Vegetation Cutter Robotic Arm with Detector (metal/GPR)

Engine specifications

Engine type / description AGCO Power 84AWF
Engine max power 348 hp
Fuel capacity 600 l
Cooling system Water Cooling
Oil capacity 150 l
Connectivity Hydraulic

Vehicle electrical system

Battery voltage 12 Volt
Battery capacity 110 Ah


Other information

The Armtrac 100-350 can operate as: 1. Mechanical Demining Equipment 2. Route Proving and Clearance Vehicle 3. Bomb Search and Detection Vehicle

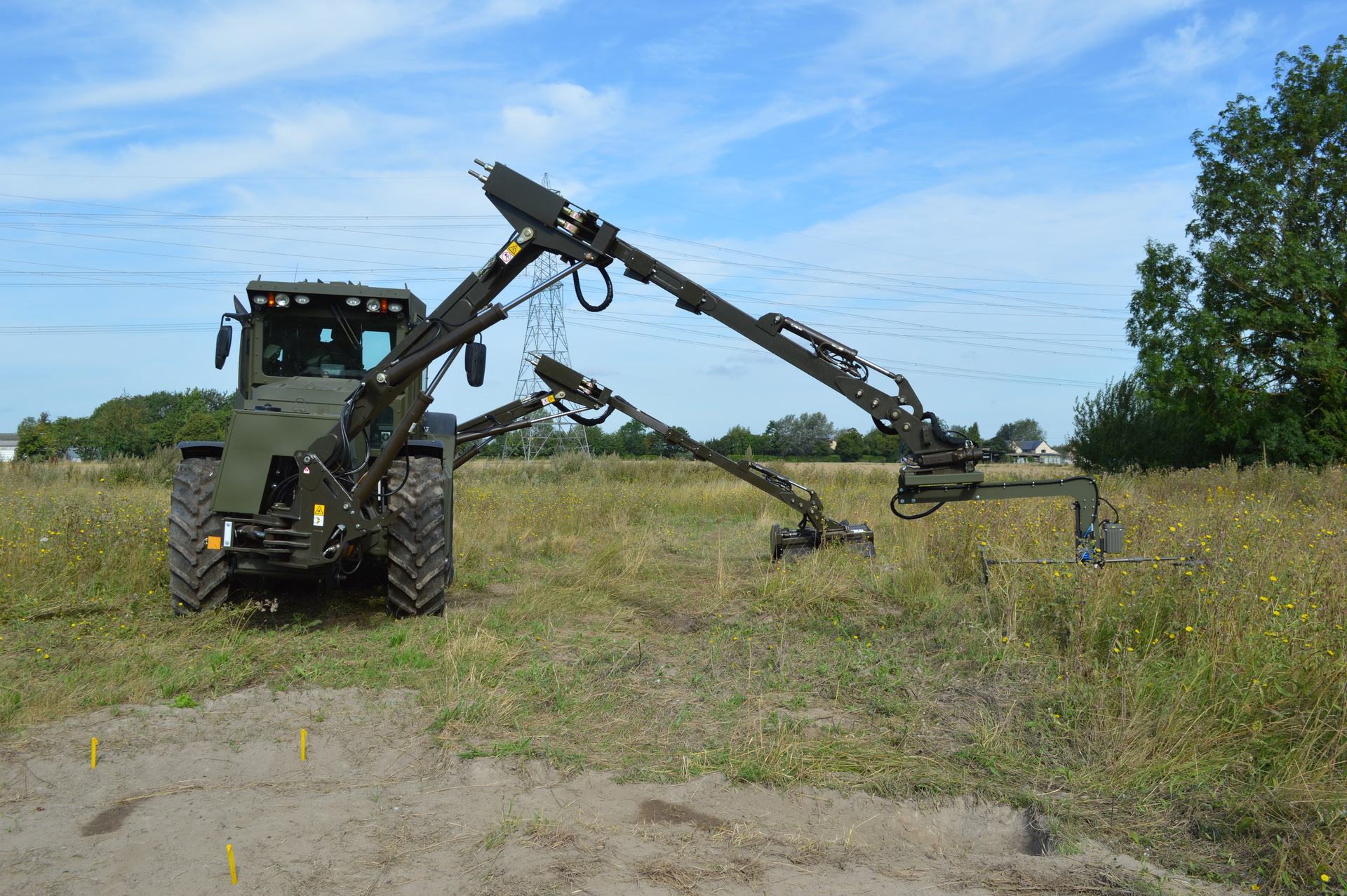

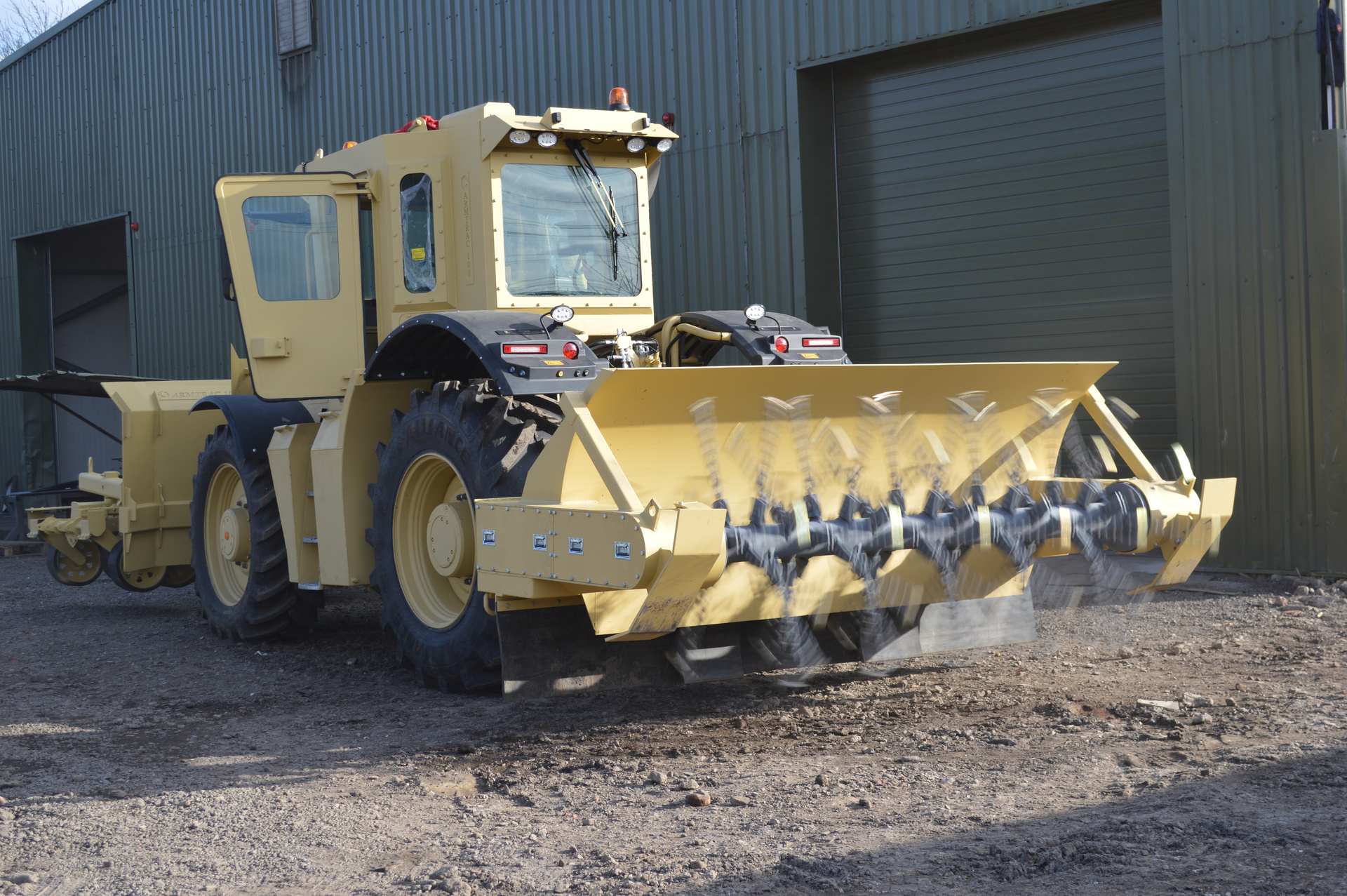

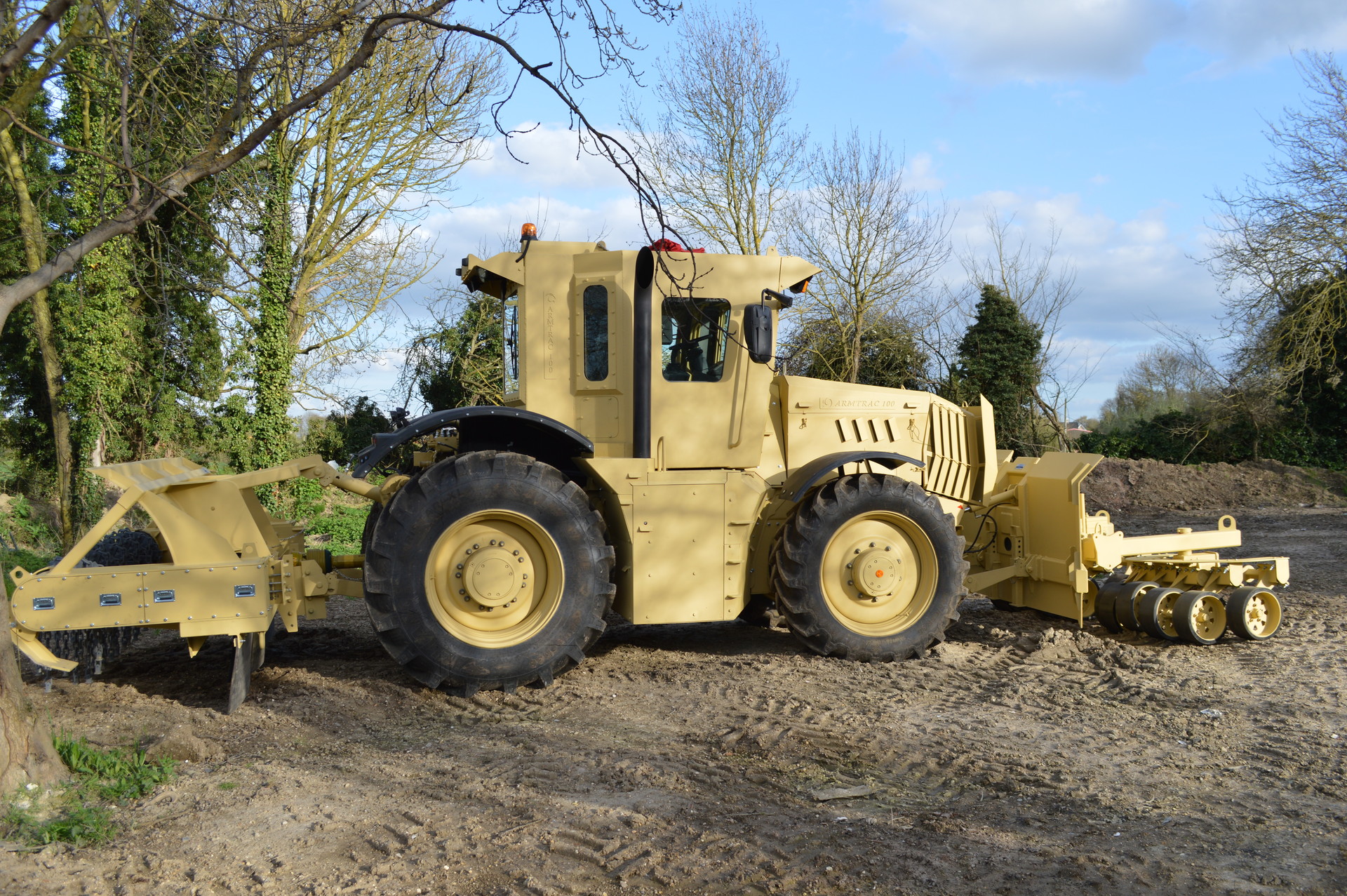

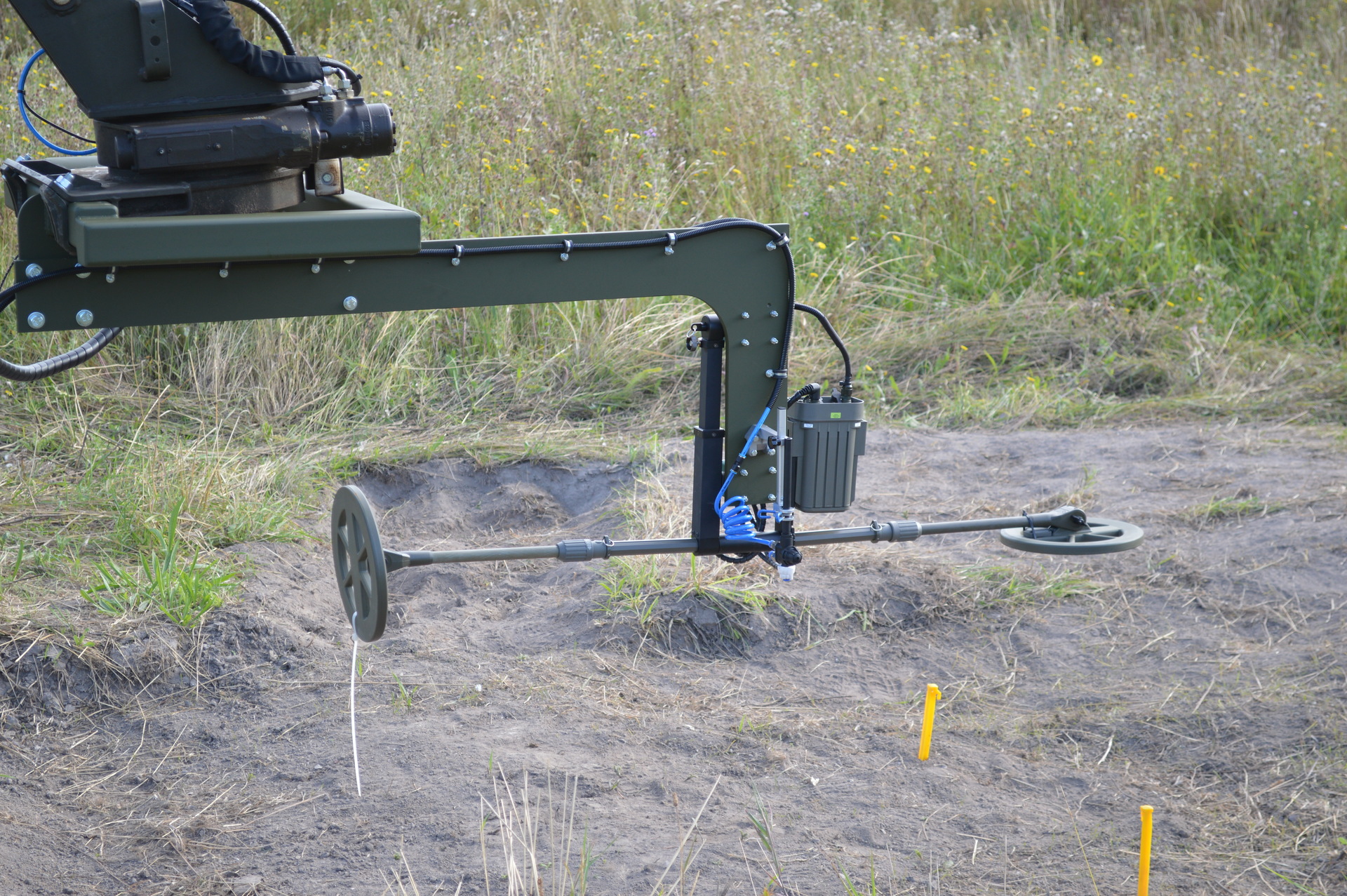

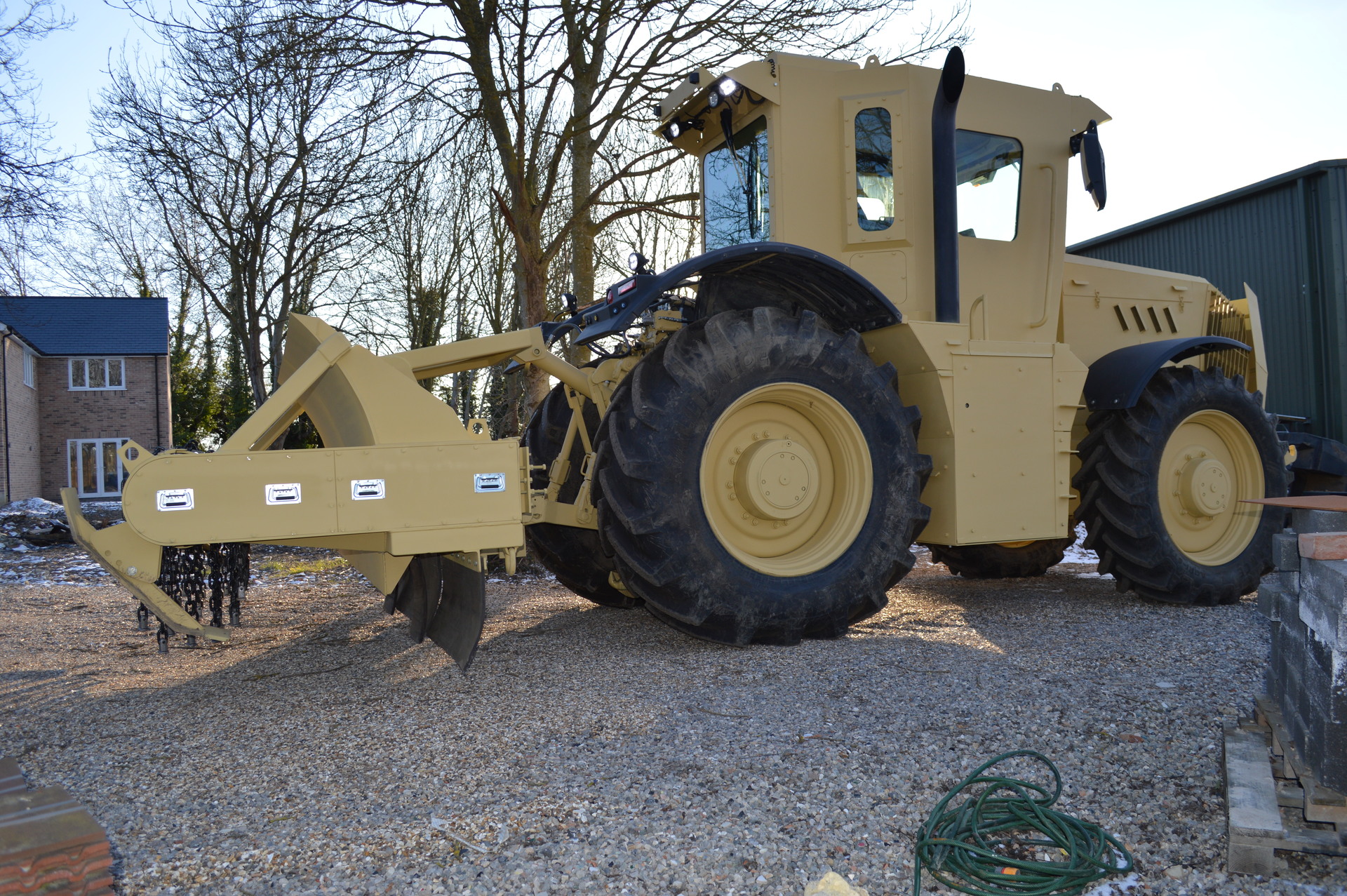

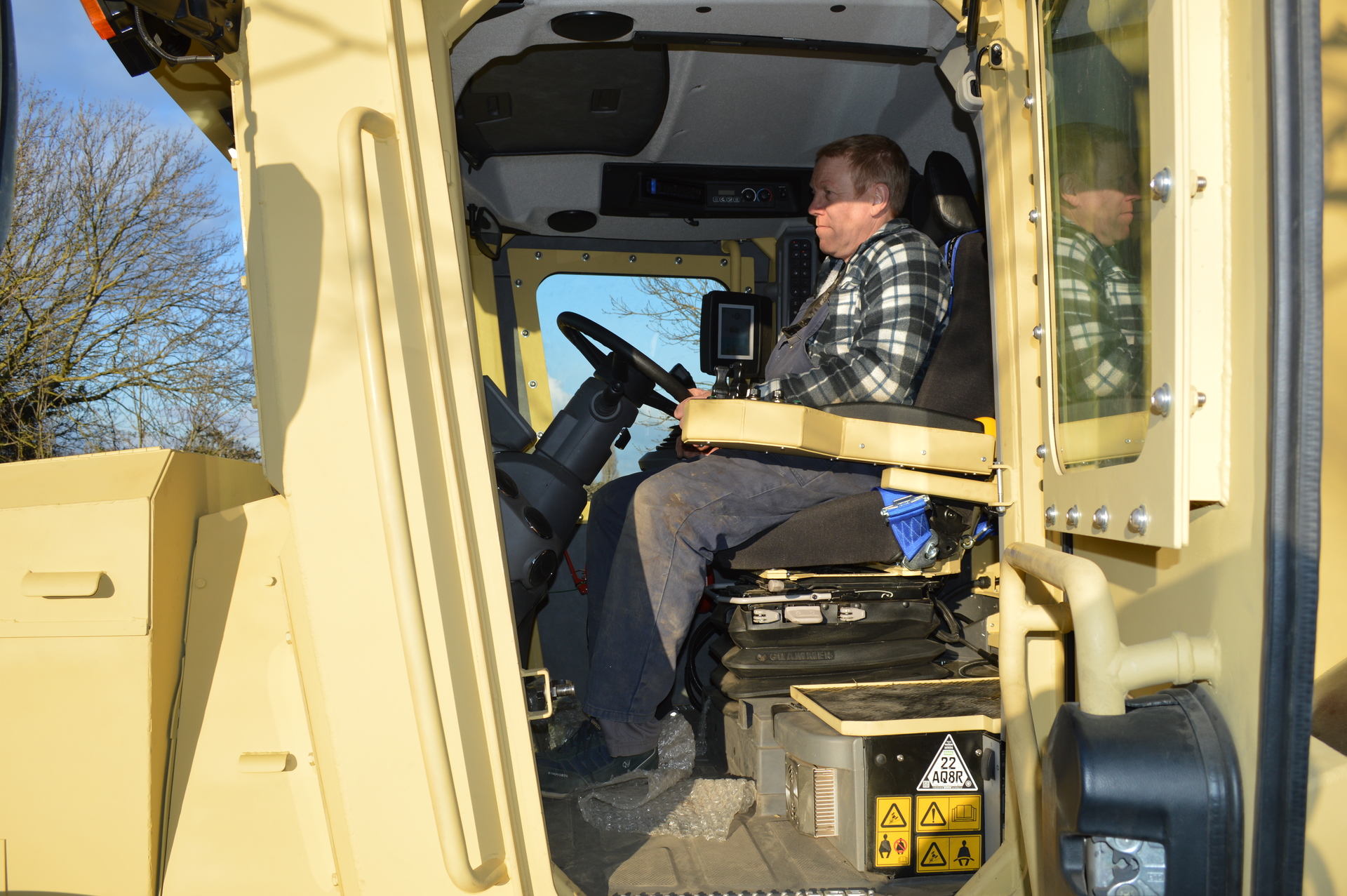

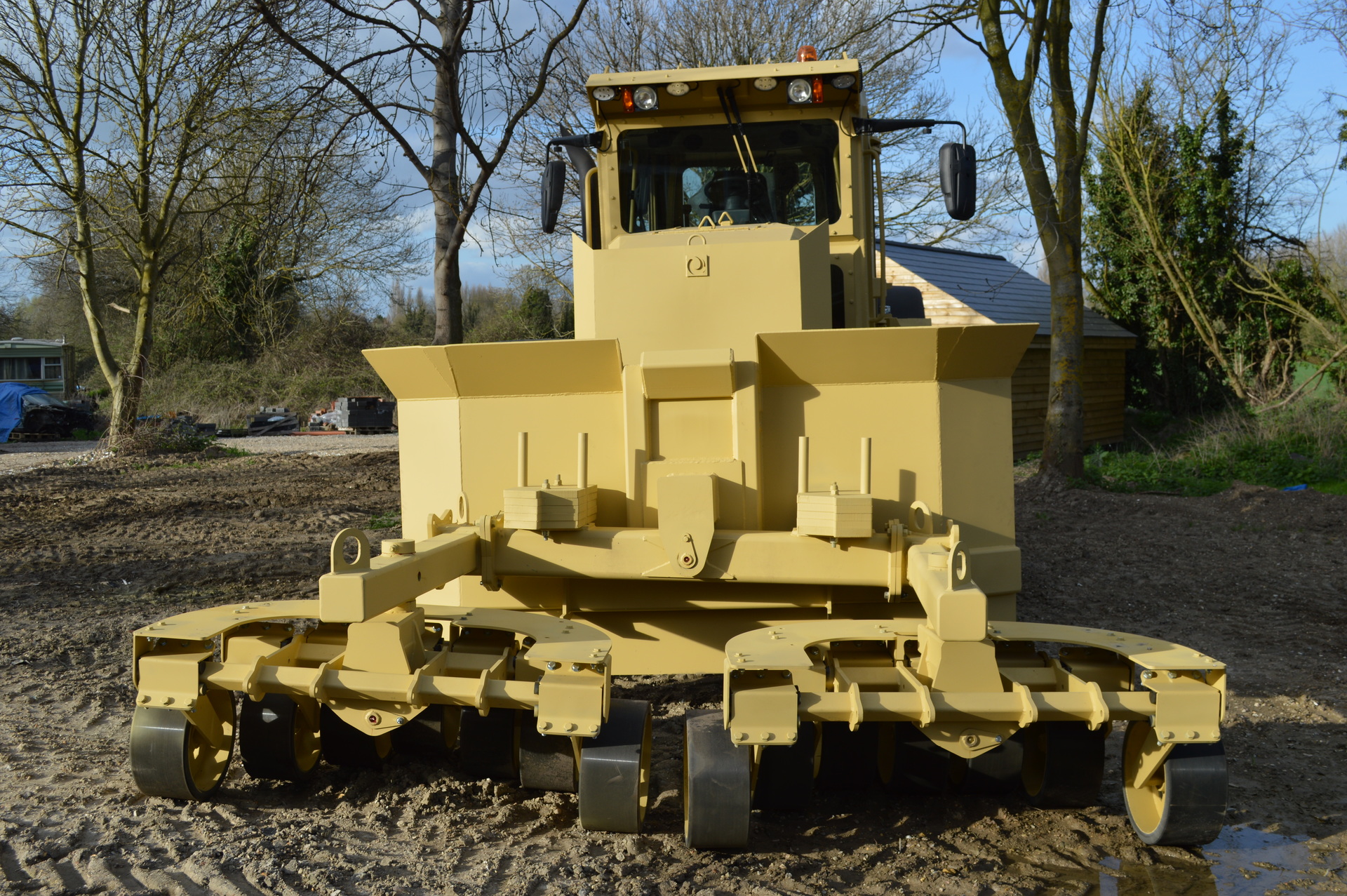

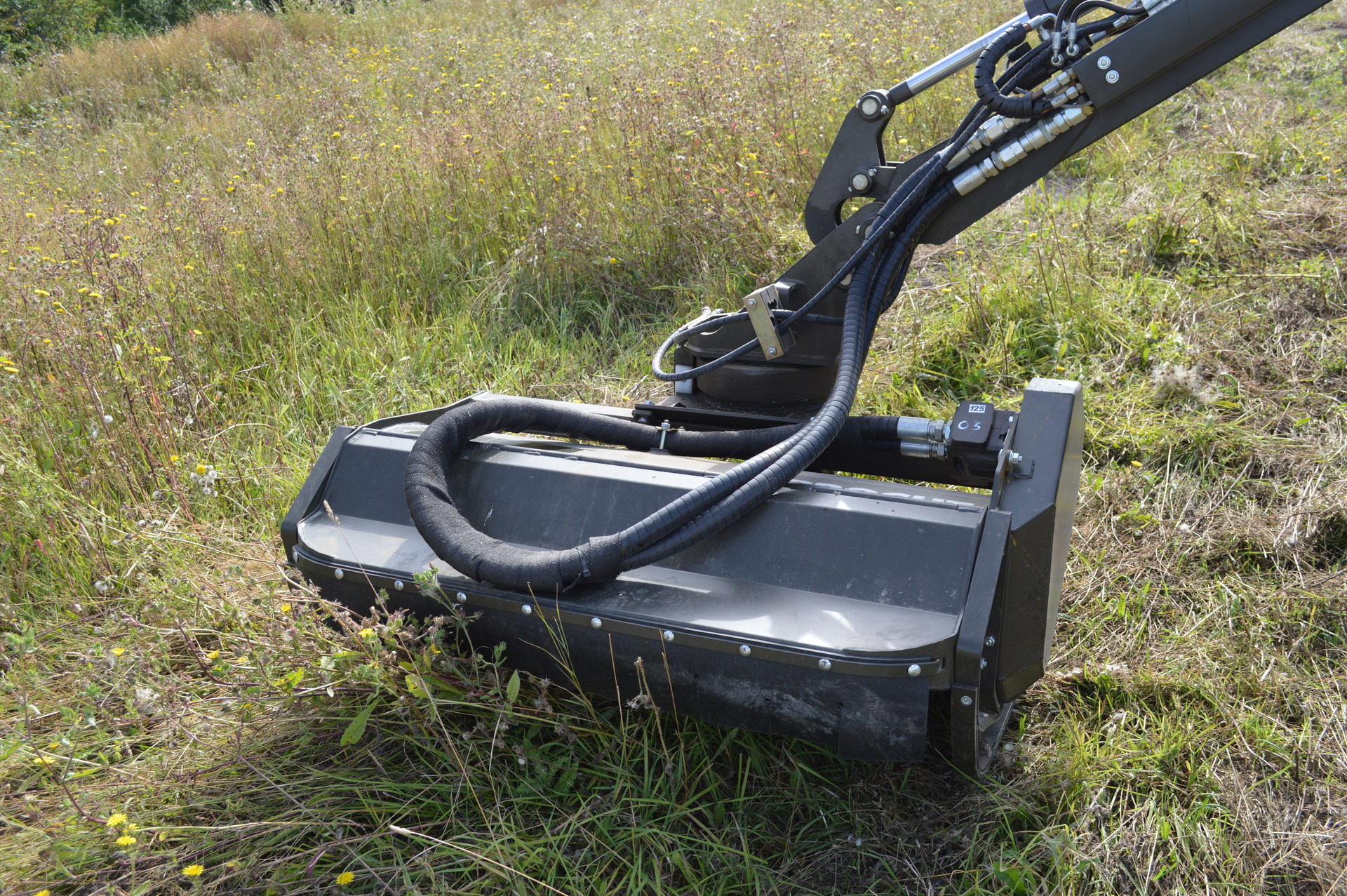

A100 Front View cw Roller Wood A100 Rear Side View cw Flail 1 A100 Rear View cw Flail Spinning Roller A100 Seat Forward Facing cw Operator A100 Seat Rear Facing cw Operator VMMD with Cutter Detector deployed Rear View VMMD Complete Side View VMMD Detector Paint Sprayer Close Up VMMD Vegetation Cutter Close Up
