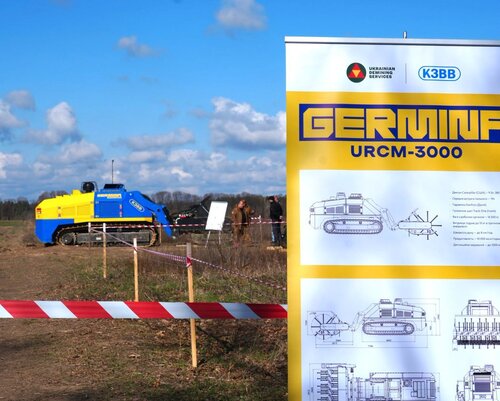

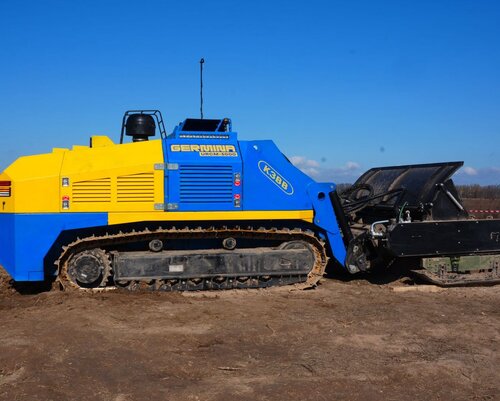

Overview
GERMINA URCM 3000 was developed based on the hands-on
experience of leading Ukrainian humanitarian demining operators
actively working in frontline and high-risk areas.
The machine demonstrates high productivity in the most common
types of terrain in Ukraine:
▪ Agricultural land
▪ Forest belts and protected natural zones
▪ Mineralized firebreaks in forested areas
▪ Riverbanks and water edge zones
Its construction is adapted to various soil types, uneven
topography, climate variability, and the specific nature of mine
threats in the region.
GERMINA is an engineering solution combining tactical e ciency,
operational versatility, and readiness for real-world daily challenges.
Specifications
| Overall length | 5405 mm |
| Length with attachment | 7786 mm |
| Overall Width | 3412 mm |
| Overall Hight | 2427 mm |
| Fits in container | 3 |
| Factory support | Yes |
| Warranty | 12 month quarantee |
| Temperature limitations | Could be operated year around |
| Base price | 588000 € |
| Reduction for higher quantity | Possible depending on quantity |
| Possible to rent | 1 |
| Price for training | 12 000 USD for a team of 5 people for 2 weeks |
| Estimated quantity in use to date | 1 |
| Tracks | 1 |
| Ground bearing pressure tracks | 0.50 kg/cm² |
| Hill climbing ability (max gradient degrees) | 30 ° |
| Rotation speed from | 500 rpm |
| Rotation speed to | 550 rpm |
| Clearance depth in varying terrain from | 5 cm |
| Clearance depth in varying terrain to | 32 cm |
| Working speed for light soil with medium vegetation | 5000 m2/h |
| Working speed for medium soil with medium vegetation | 4800 m2/h |
| Working speed for heavy soil with dense vegetation | 4600 m2/h |
| Control of clearance depth | Yes |
| Armor | NA |

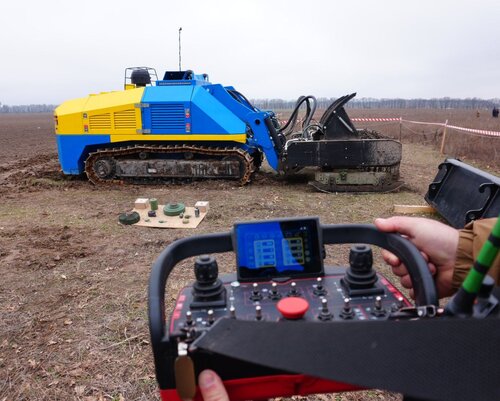

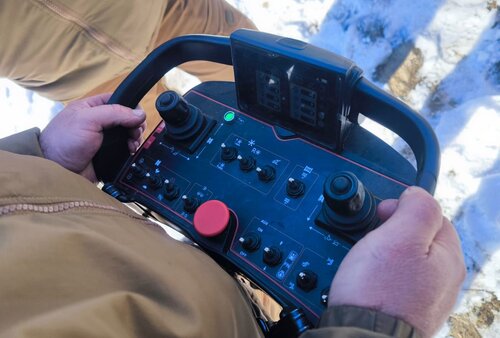

| Greatest remote controlled distance | 1200 m |

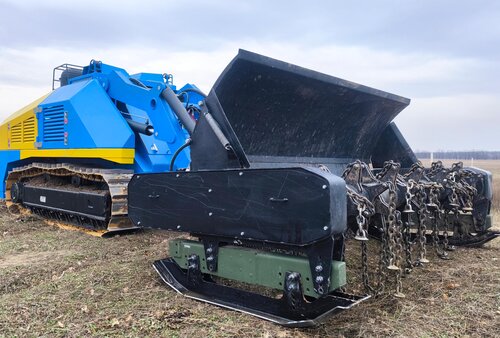

| Mechanical tools / attachments | Included in base package: Flail tool Universal bucket Spare parts kit (ZIP) Operational and maintenance documentation 1 year warranty Optional extras: Milling cutter Manipulator arm Bulldozer blade Transport trailer Mobile workshop 2 years |
| Engine type / description | In-Line 6, Type 4-stroke diesel engine with direct fuel injection, turbocharged, liquid-cooled. Model - С9.3В (Caterpillar) |
| Engine max power | 380 hp |
| Fuel capacity | 450 l |
| Fuel consumption | 25 l/h |
| Cooling system | Liquid-cooled |
| Oil capacity | 30 l |
| Battery voltage | 24 Volt |
| Battery capacity | 50 Ah |
| Safety information | Provided |
