Overview

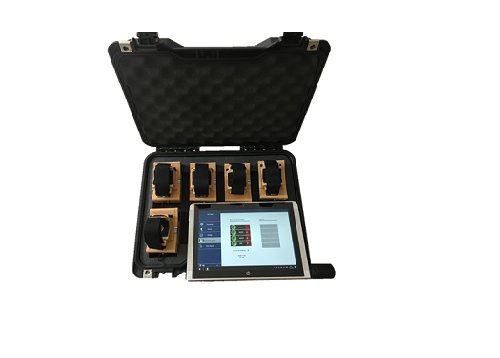

Detector training system Mergen-TIM is an easy-to-use detector training system developed in order to minimize detector sweeping errors and make correct sweeping movements by making those as reflex to deminers. Regardles to the detector they are using, the system developed for deminer teams. It yields the team commander to conduct routine detector training studies to ensure that the team is always ready for duty. While the MERGEN-TIM sensor unit detects the basic sweeping errors of the detector (height, speed, wrist angle, arc errors occurring during the use of the detector), it reflects the errors to demiers audibly and visually. At the same time, the team commander; monitores those errors wirelessly with the KUTAD software on the tablet and can make the necessary warnings. At the end of the activity, all detailed results are automatically reported for each user.
Detector Training System Instant Detection of Usage Errors Audio and Visual Alert Compatible with all detectors Instant monitoring by trainer After-Action-Evaluation training report
Specifications
Weight | 0.38 kg |
Transport case provided | 1 |
Transport case weight | 3 kg |
Case dimensions | 420x365x208 |
Factory support | 10 years technical and spare part support. |
Warranty | 2 |
Water resistant | 1 |
Temperature limitations | -10 C° to +60 C° |
Additional equipment | Charger, cables, pc |
