Overview
The HRI Route clearance roller family of rollers is designed and configured to be a modular, easy to use, easy to maintain armored vehicle mounted roller to be used for route clearance and verification, Peacekeeping, route proving and quality assurance operations.

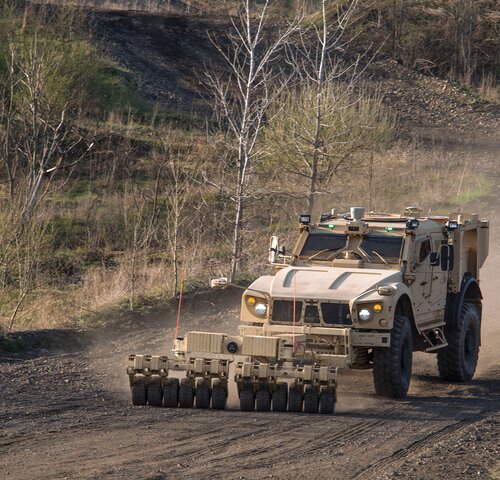

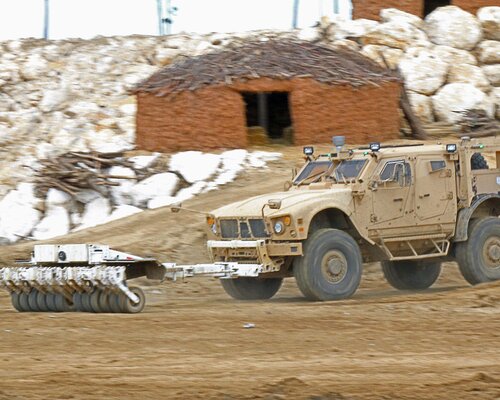

The Route Clearance Roller (RCR) is intended to be mounted on the front of an armored vehicle platform, ranging from small pickup trucks to full sized MRAP platforms for route clearance, peacekeeping and other operations. The roller consists of configurations of either 8 or 12 wheels (depending on vehicle size and application) as well as other features such as hydraulically actuated steering, headlights, and mud flaps. The roller is intended to trigger anti vehicle mines, IED's and anti personnel mines.
Specifications
| Overall length | 3692 mm |
| Length with attachment | 3692 mm |
| Overall Width | 3225 mm |
| Overall Hight | 1326 mm |
| Fits in container | 2 |
| Factory support | Yes, remote support available at all times, FSR available to visit field for training, maintenance or service contracts. |
| Warranty | Yes, 1 year, quality and workmanship |
| Water resistant | 1 |
| Best use in | non paved road conditions |
| Base price | 185694 € |
| Reduction for higher quantity | Yes, specific quote available on request. |
| Price for training | $25990 |
| Additional equipment | Headlights optional |
| Other models | 8 wheel, 12 wheel, rigid frame, basic model, etc. |
| Estimated quantity in use to date | 115 |
| Wheels | 1 |
| Ground bearing pressure tracks | Wheels/12 |
| Hill climbing ability (max gradient degrees) | 10 ° |
