Overview
General description

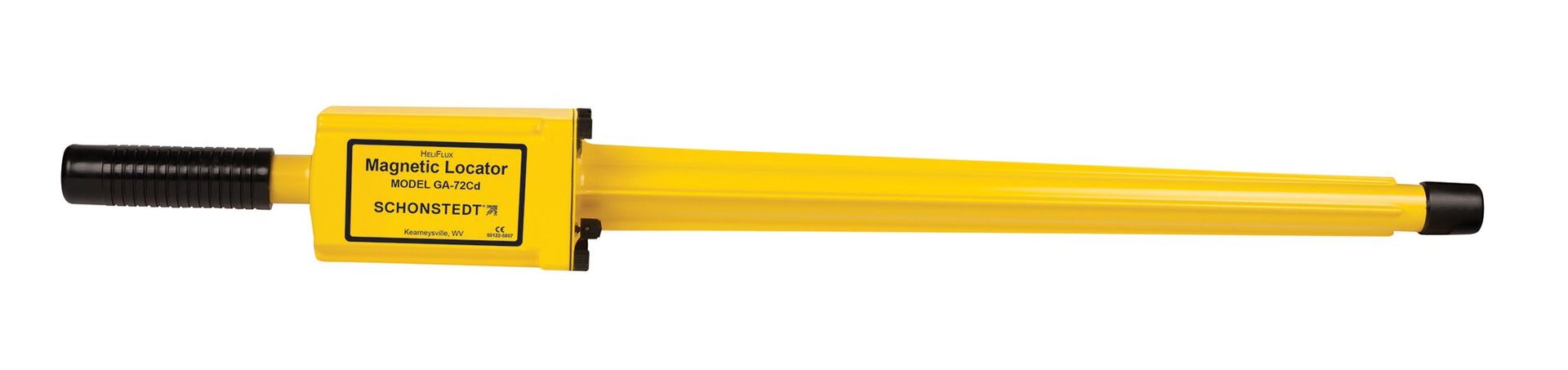

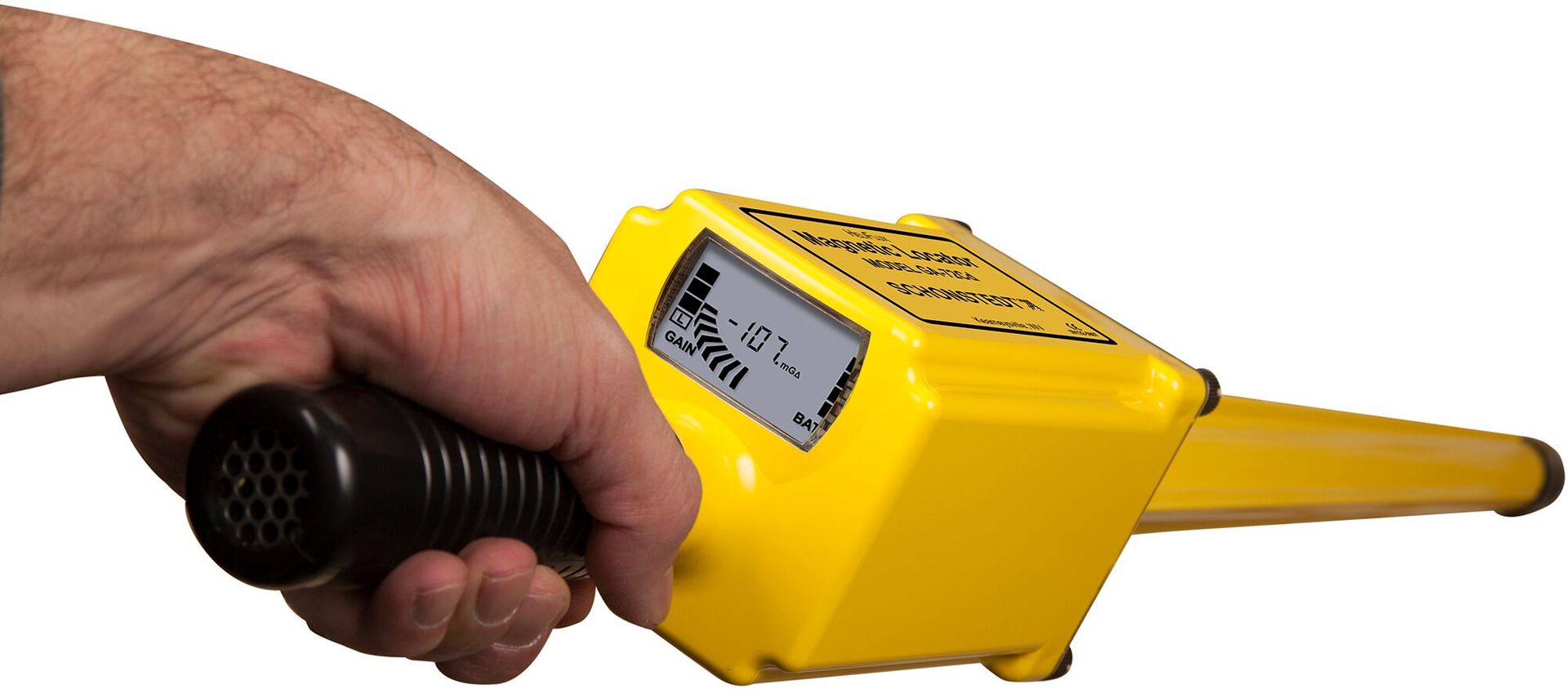

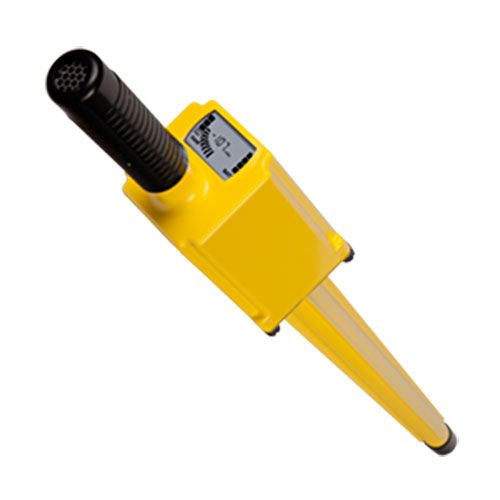

The GA-72Cd Locator detects the magnetic field of iron and steel objects. It provides audio detection signals that peak in frequency when the locator’s tip is held directly over the target. The GA-72Cd has the option of nulling or peaking. Designed for one-hand operations, the On/Off-Sensitivity and Volume controls are located on the underside of the cover. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability.Working characteristics
Analog output for data logger entry Modular construction; high performance components Lightweight, easy-to-use-design reduces search time Audio & Visual Output Choice of Two Audio Modes: Peak or Null response Battery & Sensitivity Indicators Signal Strength and Polarity Indications HeliFlux® sensors No response to aluminum, brass, or copper One Year Warranty for UXO useSpecifications
Radio, audio, visual, sensitivity data
| Audio output | Switch at “A” Signal increases or decreases in volume with gradient-field intensity. Switch at “B” Signal increases or decreases in frequency with gradient-field intensity. |

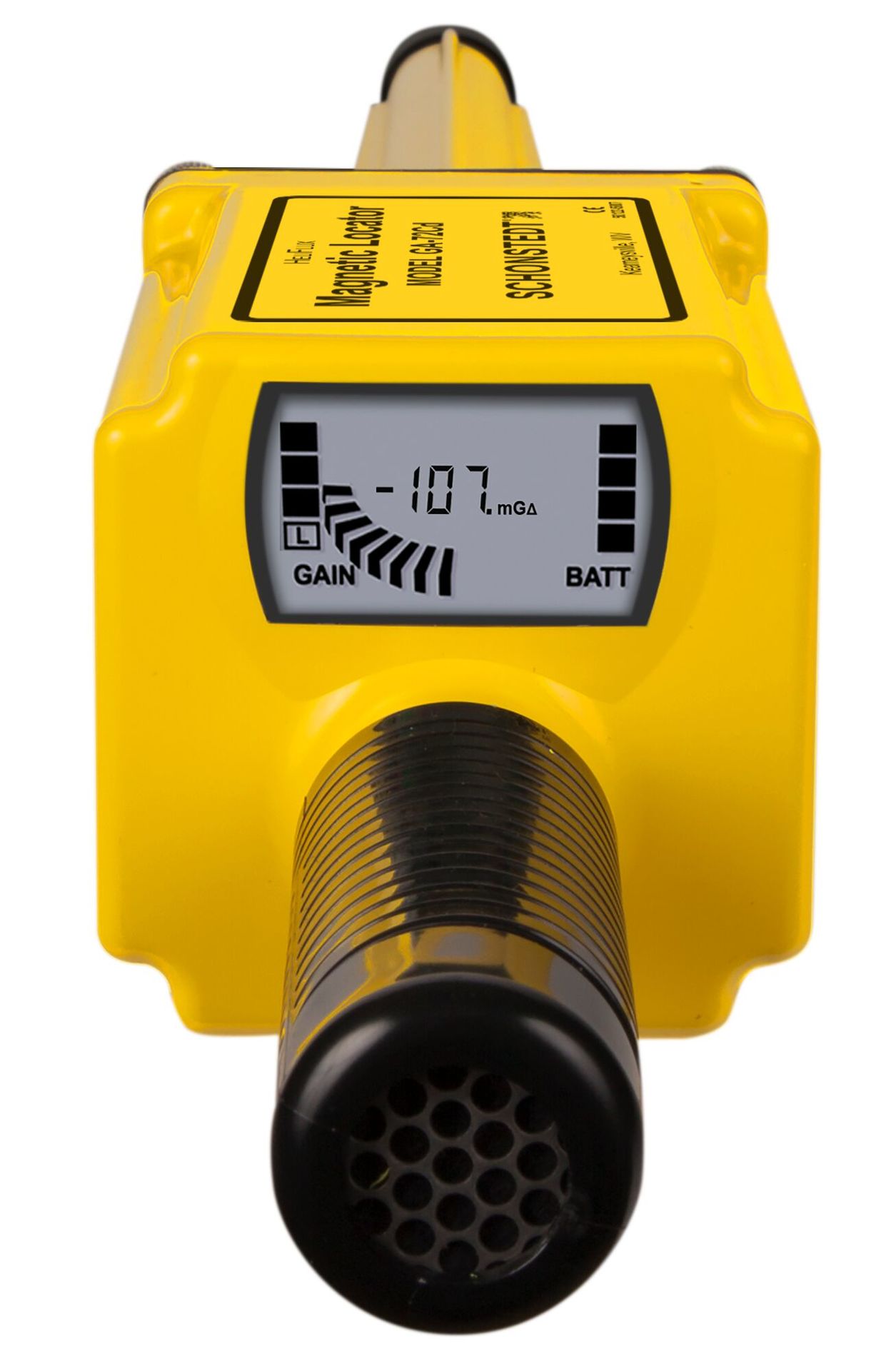

| Visual display | Digital readout and expanding bar graphs indicate polarity (+ or-) and relative strength of the magnetic field. |
| Sensitive adjustment | 1 |
Power supply data
| Battery | Supplied by two Alkaline or Lithium 9V batteries; Rechargeable batteries are optional |
| Low battery alert | 1 |
| Low battery alert information | 4-segment LCD BATT indicator |
| Operating time information | 40 Hours (intermittent usage) |
| Battery charger provided | 1 |
| Battery charger information | Rechargeable Batteries are optional |
Dimensional data
| Length | 870 mm |
| Weight | 1.14 kg |
| Search head size | 32 mm |
| Shape | Stick |
| Transport case provided | 1 |

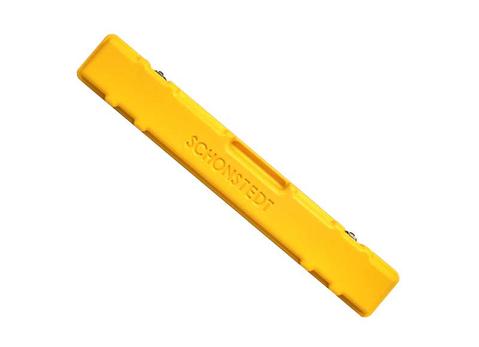

| Transport case information | Hard Case Included |
| Transport case weight | 0.9 kg |
| Transport case weight info | 82 cm x 13 cm x 16 cm |
Factory support data
| Factory support | Our customer support department is committed to providing prompt response and 100% satisfaction. Most Schonstedt locators returned to the factory for a paid repair will be completely refurbished. Not only will it look like new, it will operate within i |
| Warranty | 1 Year Warranty for EOD and UXO Use |
| Temperature limitations | Operating Temps: -25° to 60°C |
Price
| Base price | 1041 € |
| Reduction for higher quantity | Call 888-367-7014 or email schonstedt.orders@spx.com for additional pricing |
Other
| Detectors systems in use to date | GA-52Cx; GA-72Cd-ML; |
| Other models | GA-52Cx; GA-72Cd-ML; |
