Overview

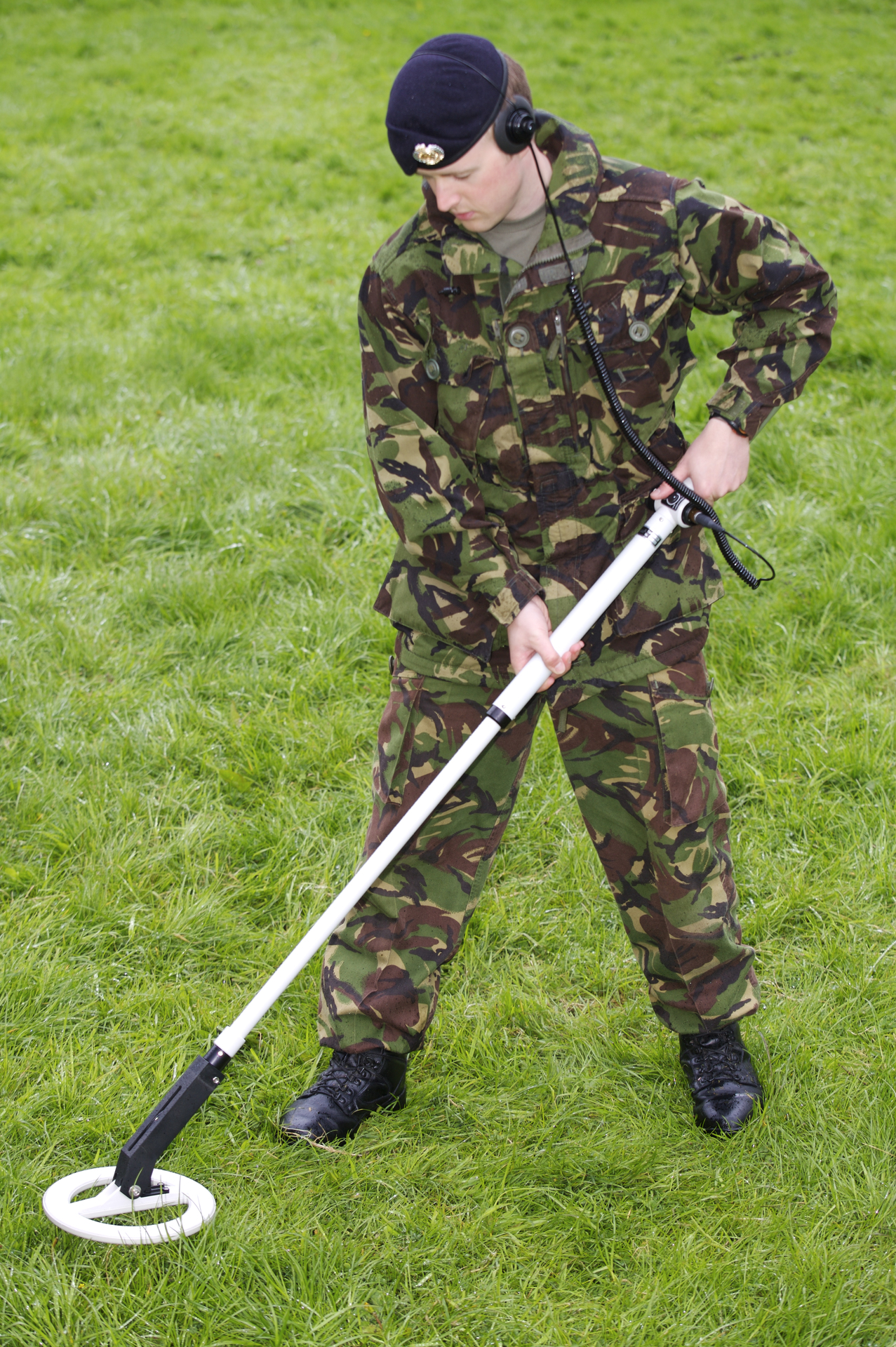

The EBEX® 422 GC represents the top of the range version of the 420 series providing enhanced detection sensitivity and extended detection range. It offers a dynamic and a static operation mode to match different working conditions. Reliable high detection performance relates to equipment which achieves a safe, pinpoint detection of targets under adverse conditions and which produces a large number of screened square metres. EBEX® 422 GC meets these requirements. Procurement cost is low when seen in conjunction with the exceptionally long service life cycle of the equipment and its versatility in Demining and BAC.
The EBINGER PI technology permits an audible distinction of the object character and a precise pin-pointing of targets. Objects such as an A/P 72a, M14 or SB33 will cause audio alarms which are different from those caused by iron fragments or mortars (rising/dropping frequency). This allows a high resolution of the targets even if buried at close distance to each other. The excellent wide-band compensation technology of EBEX® 422 GC prevails its exceptional advantages on very adverse soil when soil decomposition, high magnetic susceptibility and a strong soil conductivity are encountered. South Laos or Jaffna / Sri Lanka are just typical examples.
Specifications
| Audio output | Yes; also indicates low battery |
| Sensitive adjustment | 1 |
| Ground balance | 1 |
| Ground balance information | The wide-band compensation technology of EBEX® 422 GC prevails its advantages on most adverse soils when soil decomposition, high magnetic susceptibility and a strong soil conductivity of < 8000 S/m combined. |
| Battery | 8 dry batteries C-cell 1,5 V (IEC no. LR14); or rechargeable 8 NiMH C-cells 1,2 V / 4500 mA; or rechargeable N-iMH 9,6 V / 3,8 Ah battery pack |
| Low battery alert | 1 |
| Low battery alert information | via audio alarm |
| Rechargeable | 1 |
| Operating time | 20 hours |
| Operating time information | dry batteries LR14 appox. 20 h; NiMH C-cells, rechargeable approx. 15 h; battery pack, rechargeable approx. 12 h |
| Battery charger information | Available for the Ni-MH rechargeable battery solutions |
| Length | 1000 mm |
| Weight | 2.2 kg |
| Search head size | 230 mm |
| Shape | Round standard head; oval head for UXO search |
| Transport case provided | 1 |
| Transport case weight | 8.5 kg |
| Transport case weight info | incl. all equipment in case |
| Factory support | A worldwide service network ensures permanent availability of spare parts. Operation and maintenance training is provided at Ebinger facilities or on site. Additional factory support by specially trained staff is provided on request. |
| Warranty | 1 year warranty included. Ebinger offers prolongation |
| Temperature limitations | Operation in approx. -25° to +55° C |
| Reduction for higher quantity | Please get in contact for a personalized offer. |
| Possible to rent | 1 |
| Price for training | Please get in contact for a personalized offer. |
| Additional equipment | Optional accessories include an oval UXO search head 420 x 280 mm, a headset, handgrip and armrest, and battery chargers. |
Manuals
NATO Stock Number 6665-12-372-8248
