Overview

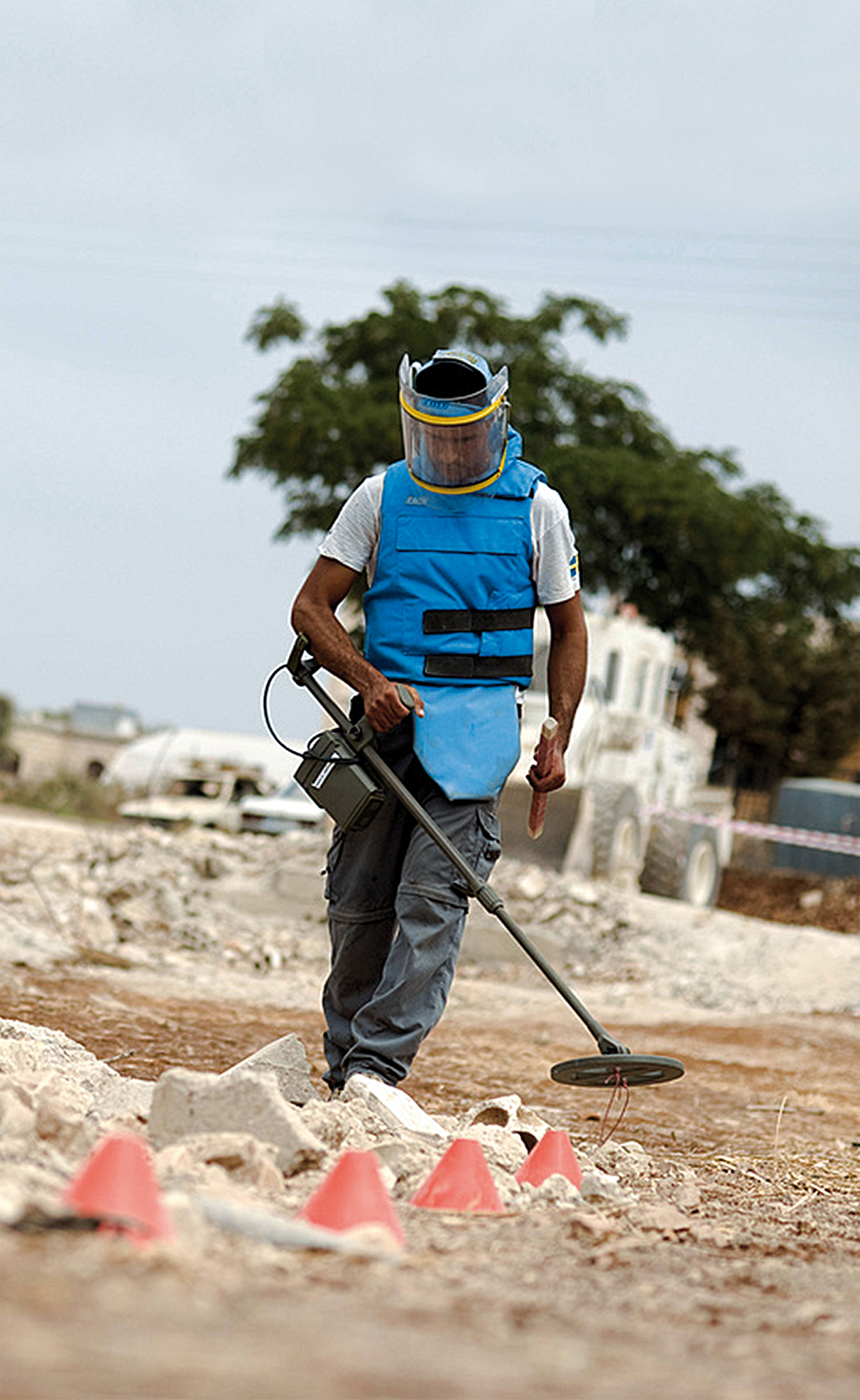

The CEIA MIL-D1 is a portable, high-sensitivity metal detector designed to detect magnetic and non-magnetic metals in conductive and non-conductive soils, including laterite and those containing magnetite. The detector comprises a light detection head, telescopic handle and electronics unit. It is supplied with a canvas carry-bag and high-impact polypropylene case. The electronics unit can be an integral part of the telescopic handle, carried over the shoulder or attached to a belt using special hooks
The MIL-D1 detector does not require manual calibration, and optimum sensitivity over all terrain types is provided by CEIA's Automatic Soil Compensation System. Localisation of metal objects is undertaken by a two-tone audible pinpointing system that allows the position of the detected mass to be identified accurately. The detector is manufactured in compliance with the ISO-9001 standard and has been designed to meet and exceed the relevant Military Environmental Standard most stringent operational detection requirements (MIL-STD -810G).
Specifications
| Audio output | clear dual tone audible pinpointing and auto-diagnostic confident tone |
| Sensitive adjustment | 1 |
| Ground balance | 1 |
| Ground balance information | optimum sensitivity over all terrain types is provided by CEIA's Automatic Soil Compensation System |
| Battery | 4 × ANSI standard size D: - 4 × 1.5 V alkaline (LR20) - 4 × 1.2 V NiMH rechargeable |
| Low battery alert | 1 |
| Low battery alert information | double tone every four second |
| Rechargeable | 1 |
| Operating time information | alkaline batteries > 65 hrs at 20°C; rechargeable > 40 hrs at 20°C |
| Battery charger information | available as an option |
| Length | 1620 mm |
| Weight | 3.2 kg |
| Search head size | 280 mm |
| Shape | circular - open |
| Transport case provided | 1 |
| Transport case information | high impact polypropilene |
| Transport case weight | 7.7 kg |
| Transport case weight info | case only |
| Factory support | Support in Country available; |
| Warranty | 1 year, can be extended |
| Humidity (limitations) | no limitations |
| Water resistant | 1 |
| Temperature limitations | Storage Temperature: -55 to +85°C; Operating Temperature : -46 to +70°C |
| Additional equipment | battery charger, Technical Maintenance Toolkit, Test Pieces for Training |
| Detectors systems in use to date | 40.000+ |
