Overview
General description

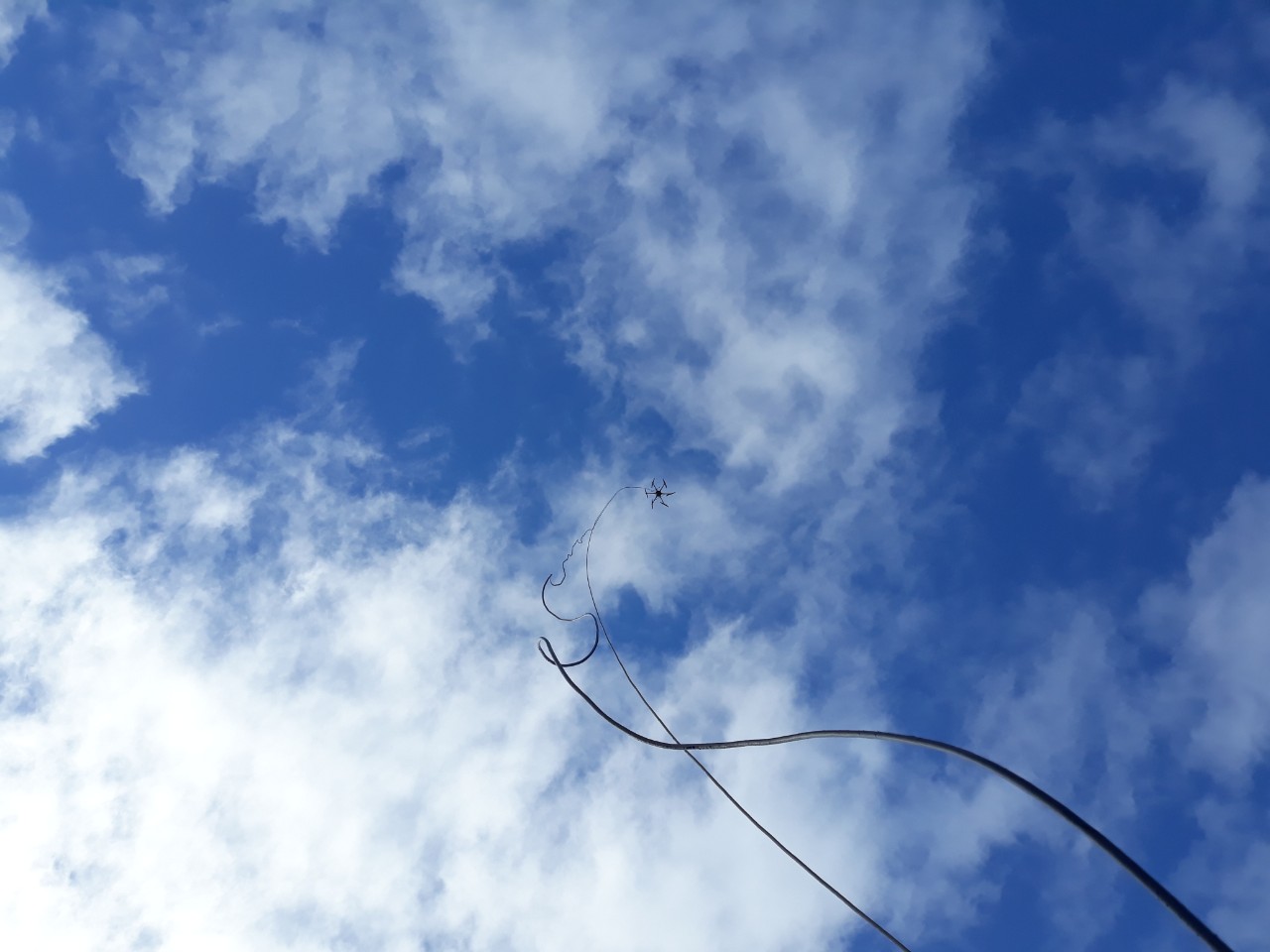

The tethered drone is intended for command, coordination and retranslation application in demining operations. In simple words, this apparatus acts as the “EYE IN SKY”.Working characteristics

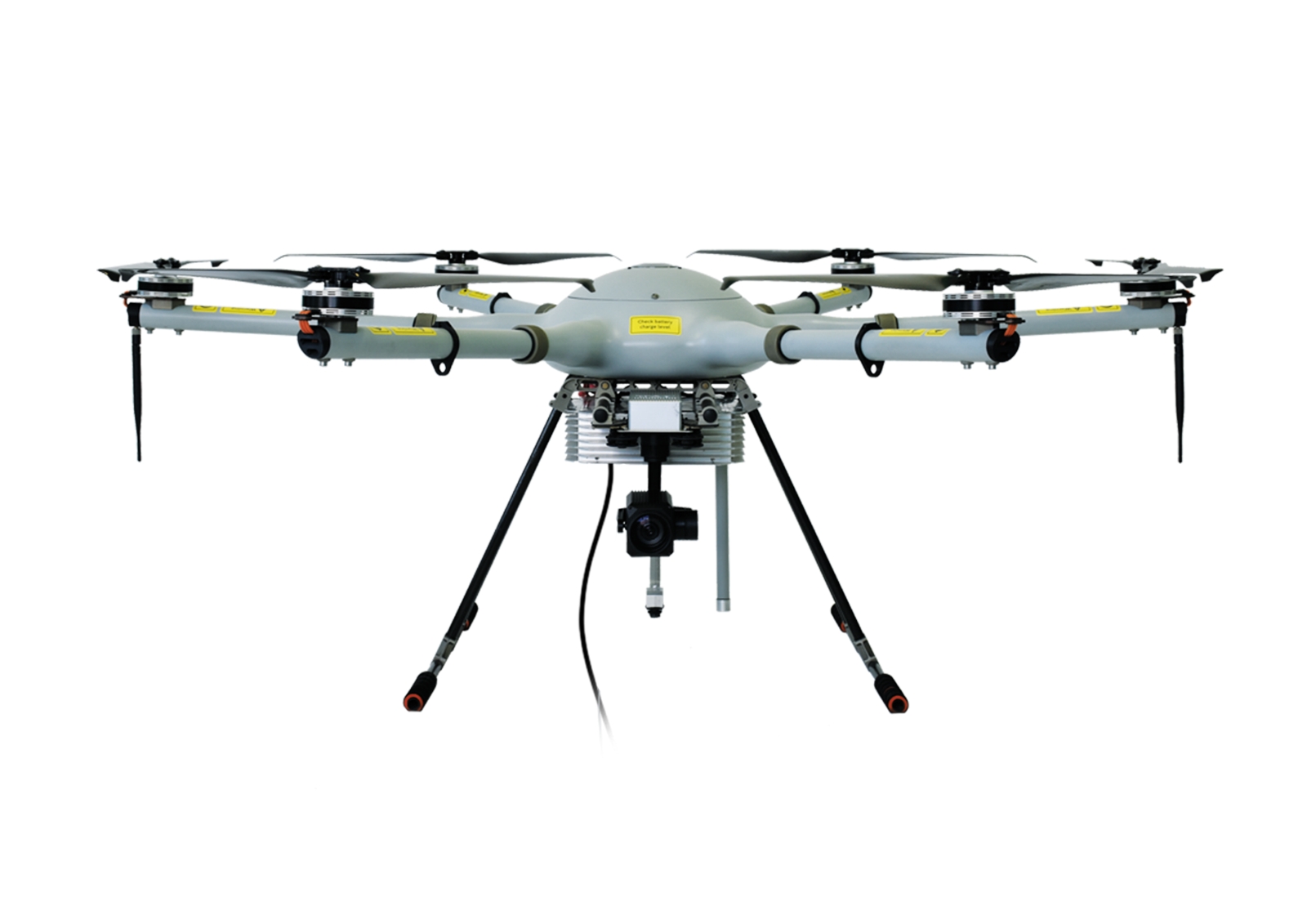

The UMT Cobra is capable of taking up to 3 kg of payload when operating at 100 meters or 5 kg when operating at 50 meters. This may be video equipment for observation or monitoring the perimeter of the demining area, or be equipped with a signal repeater or booster for closed communication between operating teams or UGVs.Specifications
Power supply data
| Battery | Power line box(tethered drone system) |
| Low battery alert | 1 |
| Low battery alert information | 15(backup battery) |
| Operating time | 1 hours |
| Operating time information | 10 hours |
| Battery charger provided | 1 |
Dimensional data
| Length | 600 mm |
| Weight | 15 kg |
| Transport case provided | 1 |
| Transport case information | 3 boxes |
| Transport case weight | 12 kg |
| Case dimensions | 1m*1m*600sm |
Factory support data
| Factory support | Completed technical support from Ukraine |
| Humidity (limitations) | 90 % |
| Water resistant | 1 |
| Temperature limitations | - 20 to +40 °C |
Price
| Reduction for higher quantity | Depending on the number of drones in the complex. |
| Price for training | Including in price(training on UMT base) |
Other
| Additional equipment | Ground Control Station |
Technical data
| Max hovering duration (no wind) | 600 minutes |
| Max wind speed resistance | 43 km/h |
| Operating frequency | 900 GHz |
| Flight / trip planning software | 1 |
| Live data transmission | 1 |
| Image processing software | 1 |
Manuals
UMT presentation 01 Other information
UMT - Sophisticated yet user-friendly unmanned aerial solutions consist of long-range hybrid UAV - CIcada and long-endurance tethered drone system - Cobra. These two unique robotic/unmanned platforms provide different capabilities in demining mission activities or humanitarian mine action projects.Multimedia
