General description

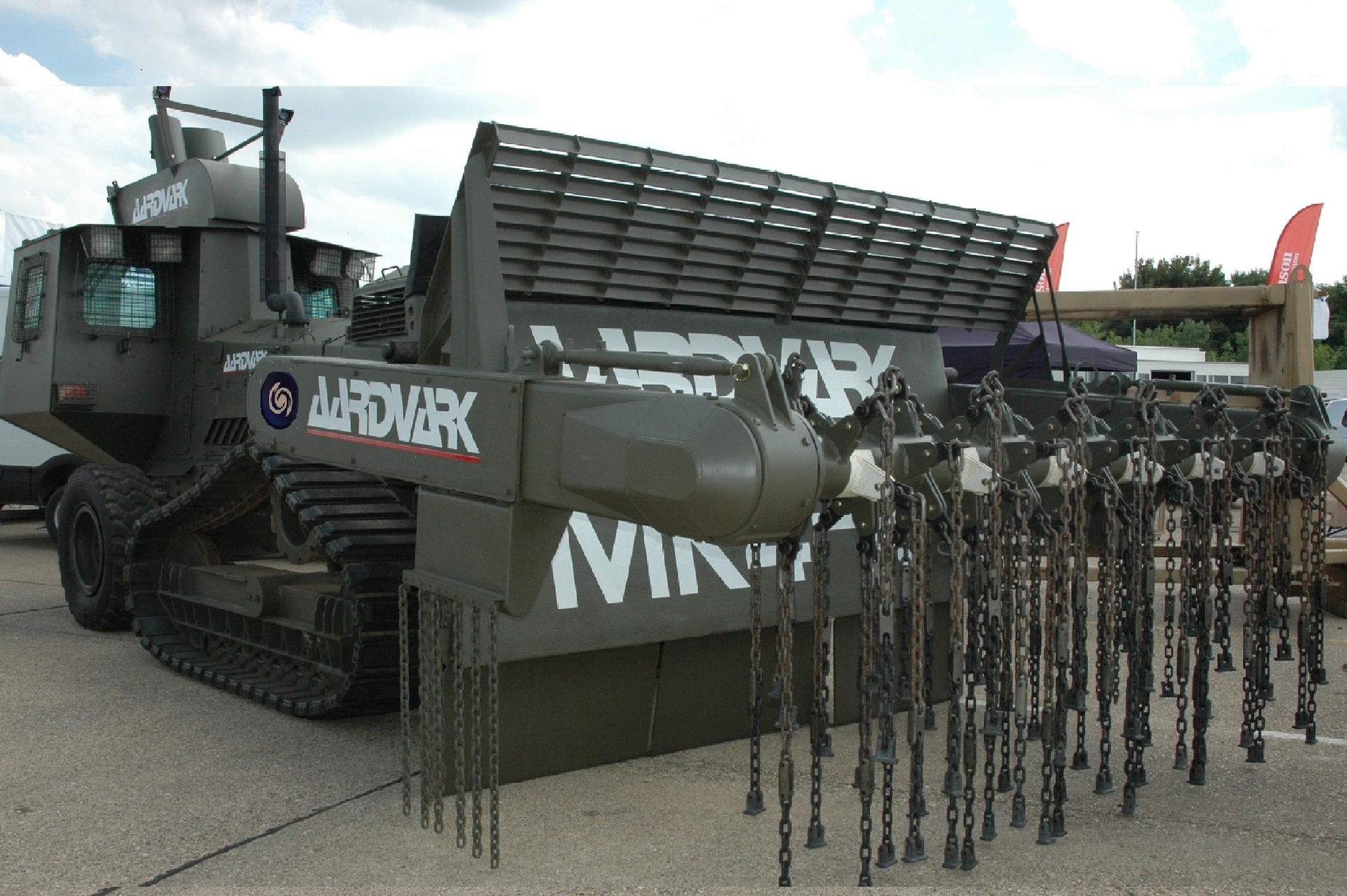

Aardvarks multi-role dedicated landmine clearance flail,

the AMCS, effectively clears anti-tank and anti-personnel

landmines, either by detonation or disruption and operates

effectively in the majority of terrain and environmental

conditions encountered in minefields throughout the world.

Aardvark has been responsible for a range of highly successful

mechanical minefield clearance machines.

All Aardvark’s systems are designed and built as dual-role

Anti-Tank and Anti-Personnel landmine clearance vehicles.

Working characteristics

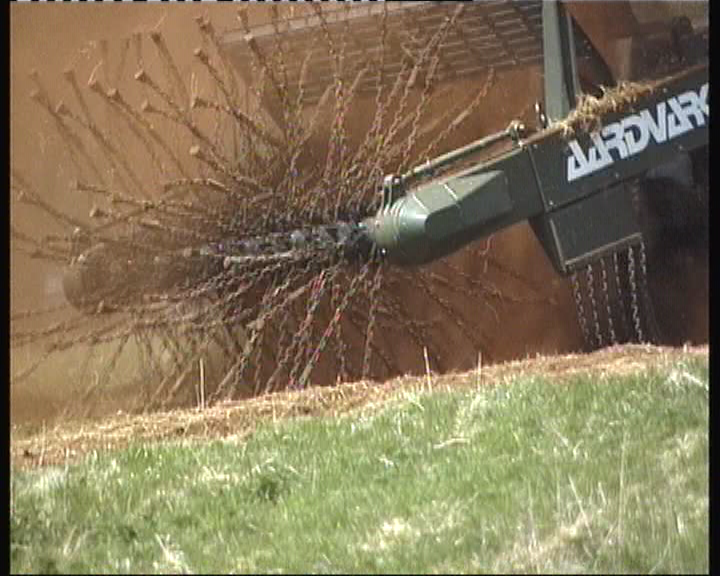

The Aardvark AMCS is effective in a variety of ground

conditions, both flat and undulating, with gradients of up to

40°. It will clear dense surface scrub of 3m in height and trees

with a trunk diameter of 15cm. It will also take out booby traps

and trip wires.

Trees and vegetation are reduced to mulch, leaving a level,

clear area which can easily be checked by hand teams, if

required. To ensure maximum percentage clearance, every

piece of ground covered by an Aardvark machine is struck with

sufficient force to disrupt/destroy and/or detonate

surface and sub-surface mines in its path. An automatic

contouring device ensures the flail is in contact with the ground

at all times. Clearance depths of up to 500mm + are achievable.


Dimensional data

Overall length 5969.00 mm
Length with attachment 8769.00 mm
Overall Width 3632.00 mm
Overall Hight 2616.00 mm
Fits in container 1


Other models Aardvark JSFU MK3, MK4

Operational data

Wheels 1
Tracks 1
Ground bearing pressure tracks 0.35kg/cm2
Hill climbing ability (max gradient degrees) 40.00 °
Rotation speed from 200.00 rpm
Rotation speed to 0.00 rpm
Clearance depth in varying terrain from 10.00 cm
Clearance depth in varying terrain to 0.00 cm
Working speed for light soil with medium vegetation 0.00 m2/h
Working speed for medium soil with medium vegetation 0.00 m2/h
Working speed for heavy soil with dense vegetation 0.00 m2/h
Control of clearance depth Aardvark Automatic Multi Input Control System
Armor 10mm Armored Steel Transp
Greatest remote controlled distance 1000.00 m

Engine specifications

Engine type / description Caterpillar 6 Cylinder Turbo Charged Diesel
Engine max power 350.00 hp
Fuel capacity 500.00 l
Fuel consumption 0.00 l/h
Cooling system Pressurized Water Liquid
Oil capacity 0.00 l

Vehicle electrical system

Battery voltage 24.00 Volt
Battery capacity 210.00 Ah
