General description

The FEREX is a vertical gradient fluxgate magnetometer that measures the deformation of the earth's magnetic field evoked by ferromagnetic objects. Magnetometers are suitable for

the detection of ferromagnetic metals like iron, steel or nickel. Normally the detection Depth of magnetometers is larger compared to active EMI detectors but it varies and depends on

the object's mass and its magnetic properties.

Working characteristics

Detection of ferrous material/UXO e.g. bombs, shells, projectiles, sub-ammunitions

Magnetometer using tension band technology

In-built filters for search under power lines

Special mode for search along fences, pipelines and railway tracks

Special mode for filtering small objects

Precise handling, light weight

Low noise for high detection sensitivity

Compact detector in one piece design


Radio, audio, visual, sensitivity data

Transmission frequency 0.00 kHz
Audio output yes

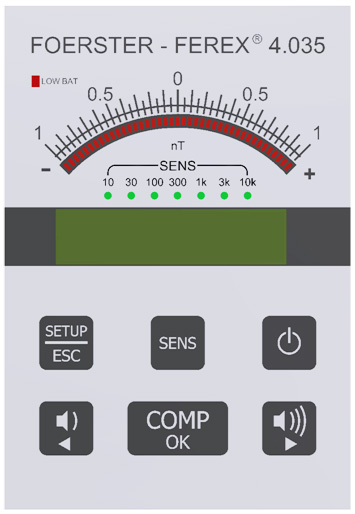

Visual display yes
Depth indication down to 6m
Sensitive adjustment 1
Ground balance 1
Ground balance information yes

Power supply data

Battery 4 x 1.5V Batteries (LR20) or 4 x 1.2V NiMH
Low battery alert 1
Rechargeable 1
Operating time 80.00 hours

Dimensional data

Length 1250.00 mm
Weight 3.30 kg
Search head size 550.00 mm
Shape one-piece design with 550mm sensor spacing magnetometer probe

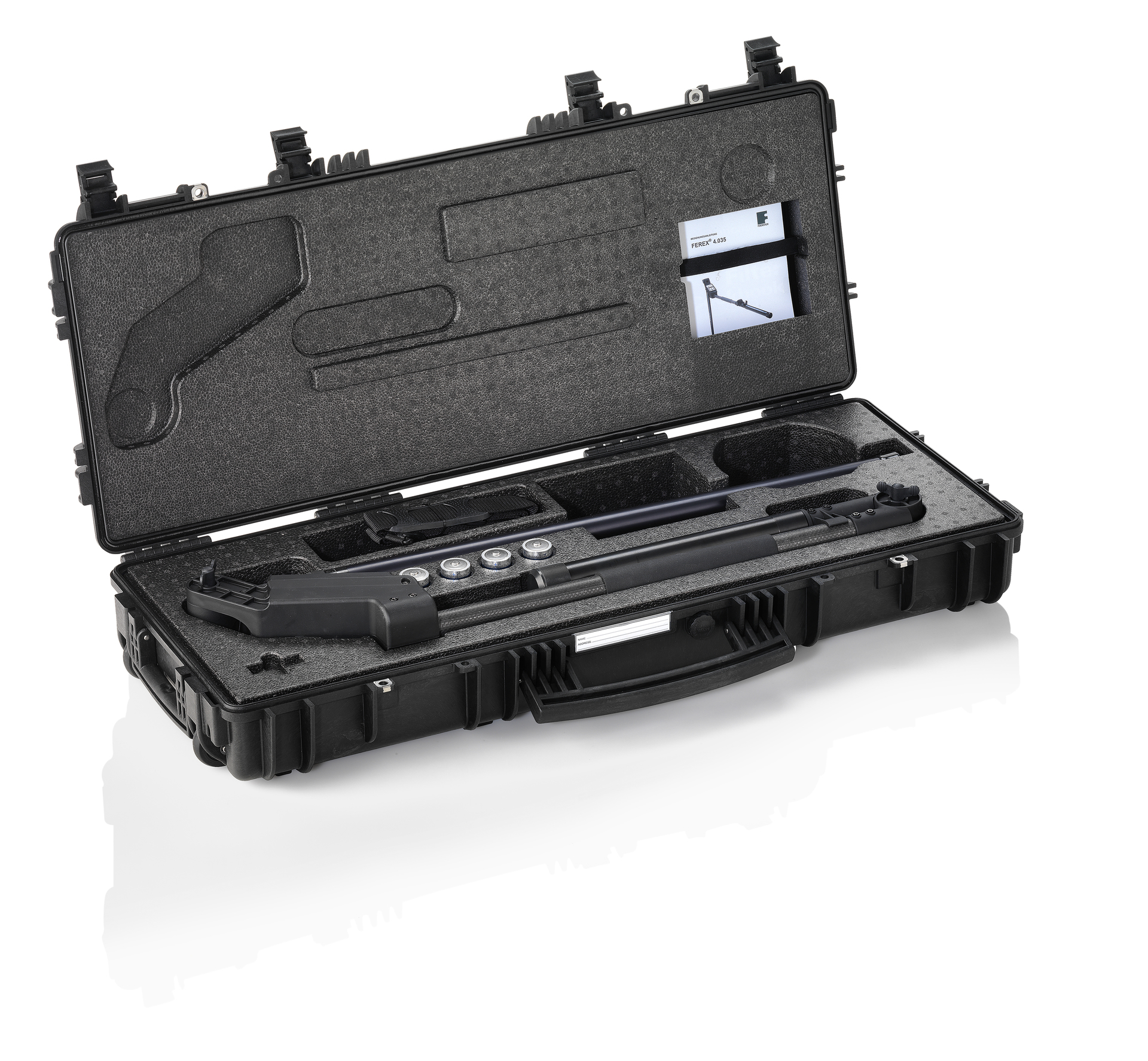

Transport case provided 1
Transport case information rugged case
Transport case weight 7.80 kg

Factory support data

Warranty 2 years
Water resistant 1
Temperature limitations approved acc. to serveral MilStd 810G and 465G


Base price 0.00 €
Reduction for higher quantity please contact for a detailed quotation
Possible to rent 1
Price for training please contact for a detailed quotation


Additional equipment Borehole detection  Underwater detection  Extension cable up to 100m  Pulling rope  Ballast weight  Headphone
