Overview
R-BOT Unmanned Ground Vehicle. Ideal for Remote Inspection, Humanitarian and Demining Operations, EOD, and Financially limited security missions.

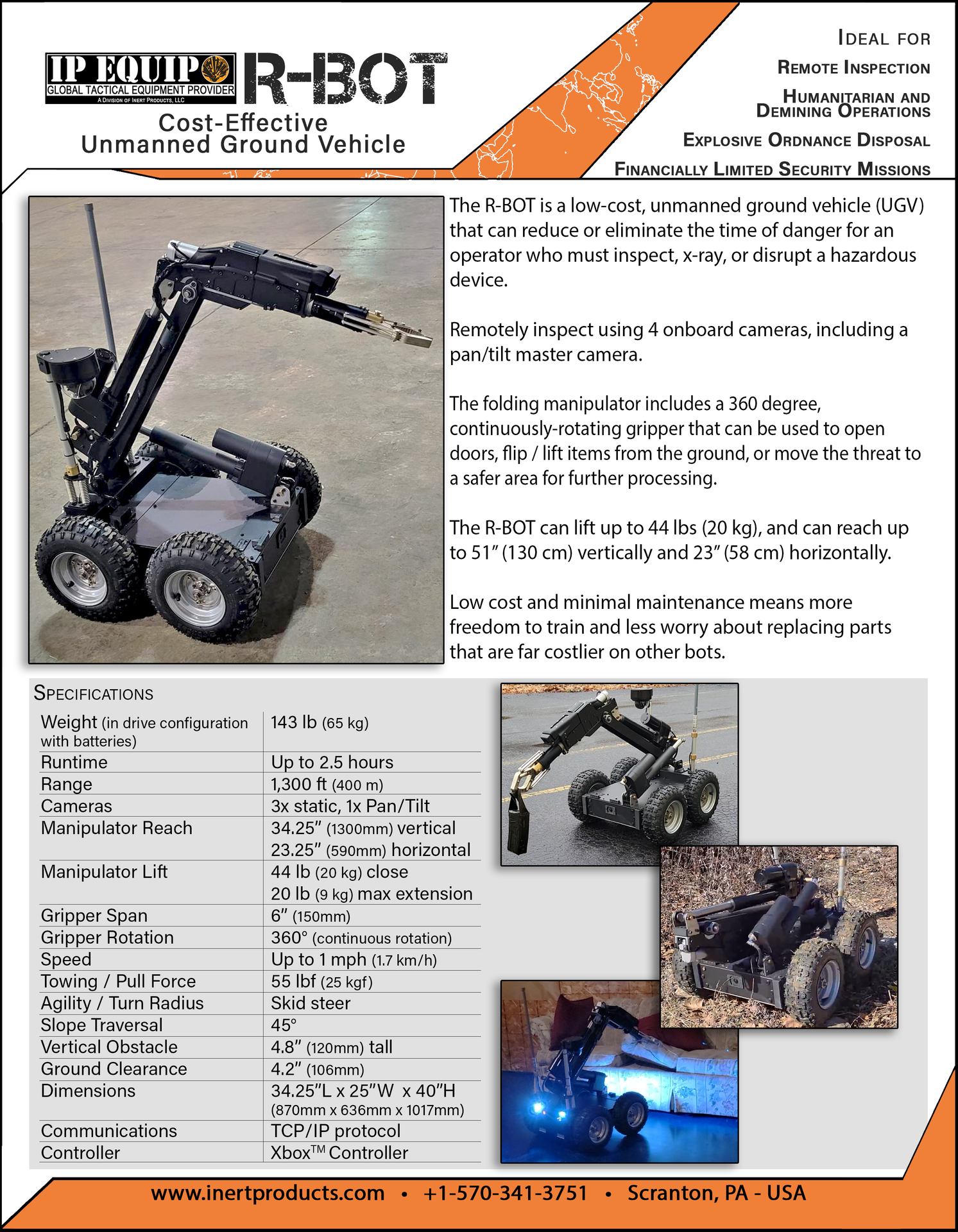

The R-BOT is a low-cost, unmanned ground vehicle (UGV) that can reduce or eliminate the time danger of an operator who must inspect, x-ray, or disrupt a hazardous device. Remotely inspect using 4 onboard cameras, including a pan/tilt master camera. The folding manipulator includes a 360-degree, continuously-rotating gripper that can open doors, flip/lift items from the ground, or move the threat to a safer area for further processing. The R-BOT can lift up to 44 lbs (20 kg), and can reach up to 51” (130 cm) vertically and 23” (58 cm) horizontally. Low cost and minimal maintenance means more freedom to train and less worry about replacing far costlier parts than other bots. SPECIFICATIONS Weight (in drive configuration | 143 Ib (65 kg) with batteries) Runtime Up to 2.5 hours Range 1,300 ft (400 m) Cameras 3x static, 1x Pan/Tilt Manipulator Reach 34.25" (1300mm) vertical 23.25" (590mm) horizontal Manipulator Lift 44 |b (20 kg) close 20 Ib (9 kg) max extension Gripper Span 6" (150mm) Gripper Rotation 360° (continuous rotation) Speed Up to 1 mph (1.7 km/h) Towing / Pull Force 55 bf (25 kgf) Agility / Turn Radius Skid steer Slope Traversal 45° Vertical Obstacle 4.8" (120mm) tall Ground Clearance 4.2" (106mm) Dimensions - 34.25"L x 25"W x 40"H (870mm x 636mm x 1017mm) Communications - TCP/IP protocol Controller - Xbox™ Controller
Specifications
| Length | 00 mm |
| Weight | 65 kg |
| Transport case information | NA |
| Transport case weight | 00 kg |
| Transport case weight info | NA |
| Case dimensions | 00 |
| Factory support | Inquire |
| Warranty | Inquire |
| Humidity (limitations) | 00 |
| Temperature limitations | 00 |
| Base price | 45000 € |
| Reduction for higher quantity | Please inquire directly about volume pricing. |
| Price for training | Training can be offered in the USA or abroad. Pricing is dictated by location and duration. Please inquire directly about training prices. |
| Additional equipment | NA |
| Other models | NA |
| Maximum speed | 1.7 km/h |
| Maximum speed mode | 00 |
| Max trop duration (no wind) | 00 minutes |
| Max hovering duration (no wind) | 00 minutes |
| Max flight distance (no wind) | 00 m |
| Max wind speed resistance | 00 km/h |
| Operating frequency | 00 GHz |
| Live data transmission | 1 |
