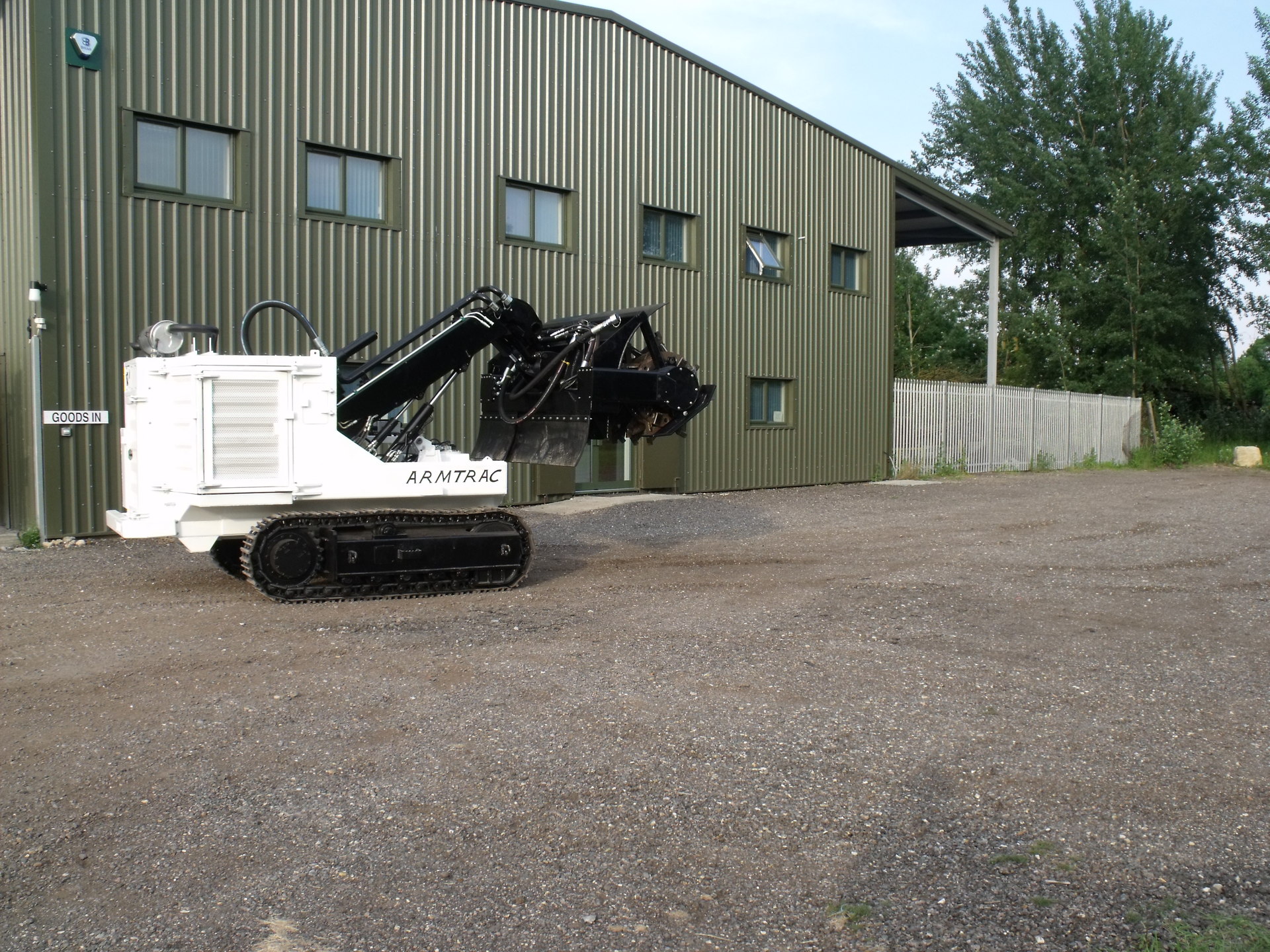

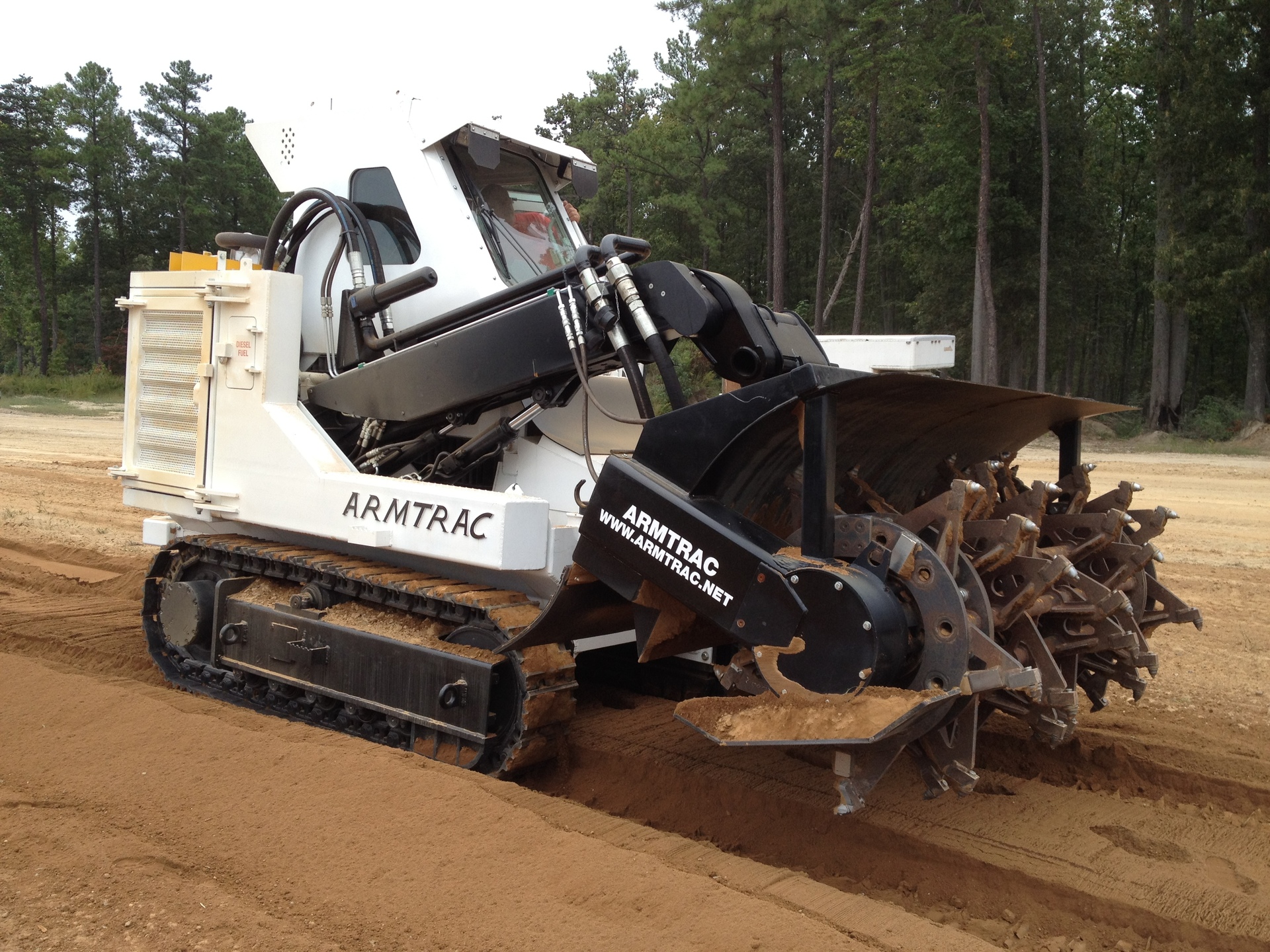

The Armtrac 75T-230 is Armtrac’s middle of the range demining machine. Smaller than the Armtrac 400, the 75T still maintains all of the functionality of its bigger brother for all demining activities. With its hydraulically operated 2.2 meter Tiller Rotor, the 75T is capable of clearing approximately 1,100 square meters per hour, to a verified (*CROMAC tested) depth of 35cm. A Flail is also available. The 75T is designed to destroy & withstand 10kg Anti-Tank mines
The 75T is fully remote controlled up to 800 meters allowing the Operator to remain at a safe distance while still maintaining 100% control of all the machine’s functions, or alternatively if fitted with its fully armoured, sound proofed & air-conditioned cabin (which can withstand NATO Ball at point blank range), an Operator can maintain a detailed “bird’s eye” view of demining operations in complete comfort & safety. Remote Control is still available on Cabin fitted versions.
The cabin maintains the same design as the Armtrac 400; however it can tilt forward to allow easy access to the engine, hydraulics & electrics for ease of maintenance.

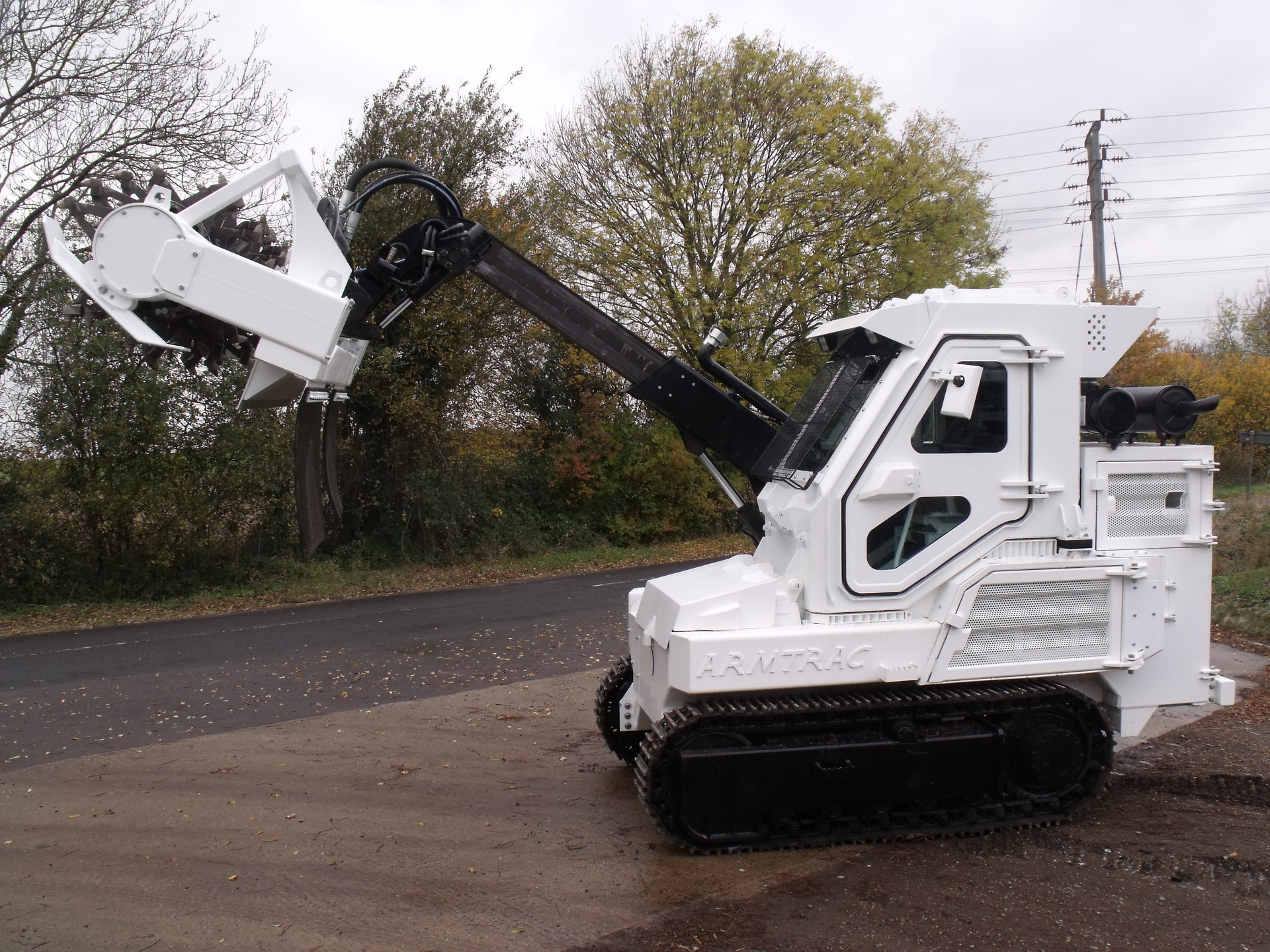

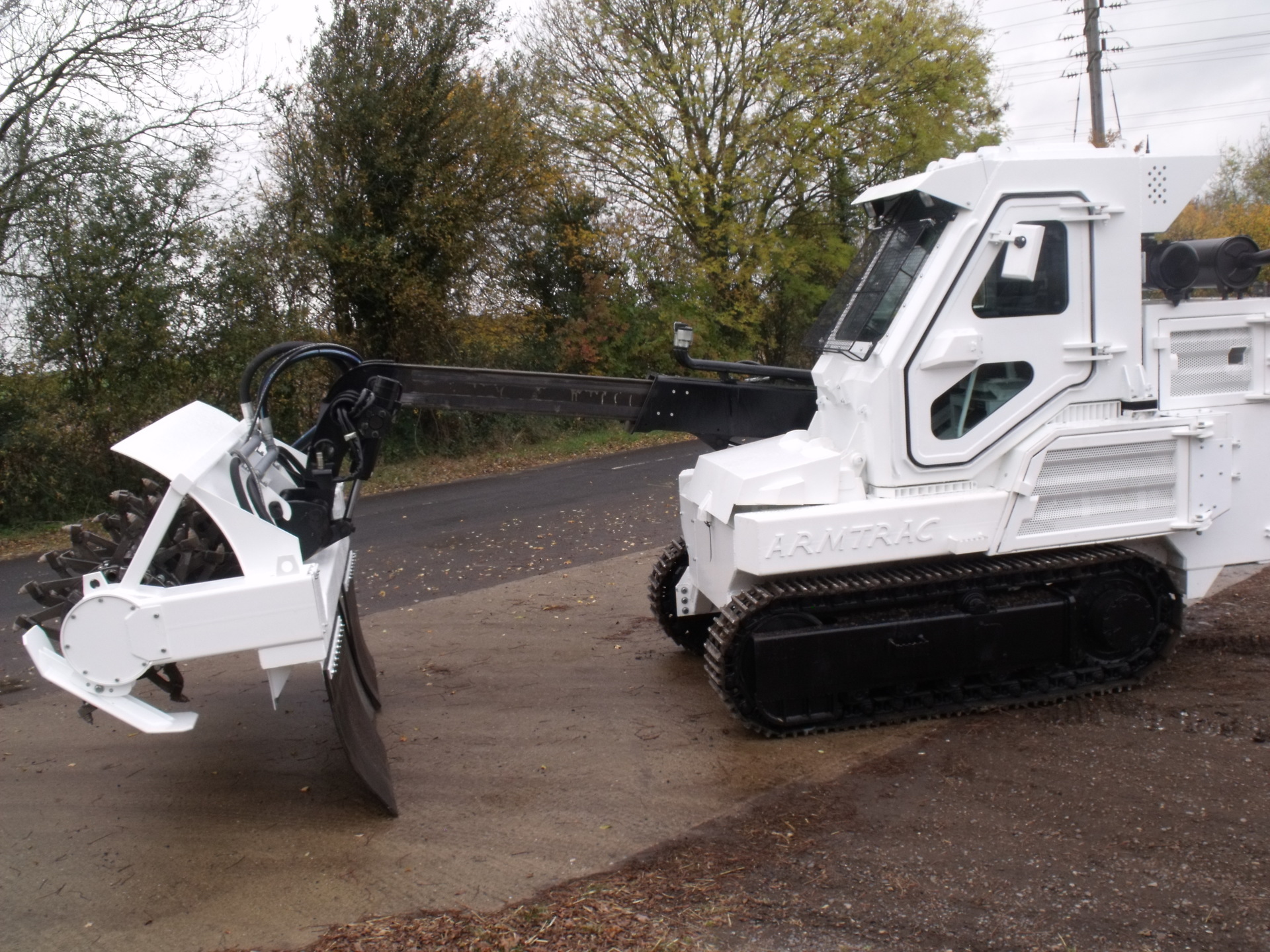

The Armtrac 75T-230 has a telescopic boom to which different clearance toolkits can be attached. This boom can be extended to clear mines and UXO in difficult locations such as on river banks and on inclines, while remaining completely stationary. This is a unique feature to Armtrac tracked machines.

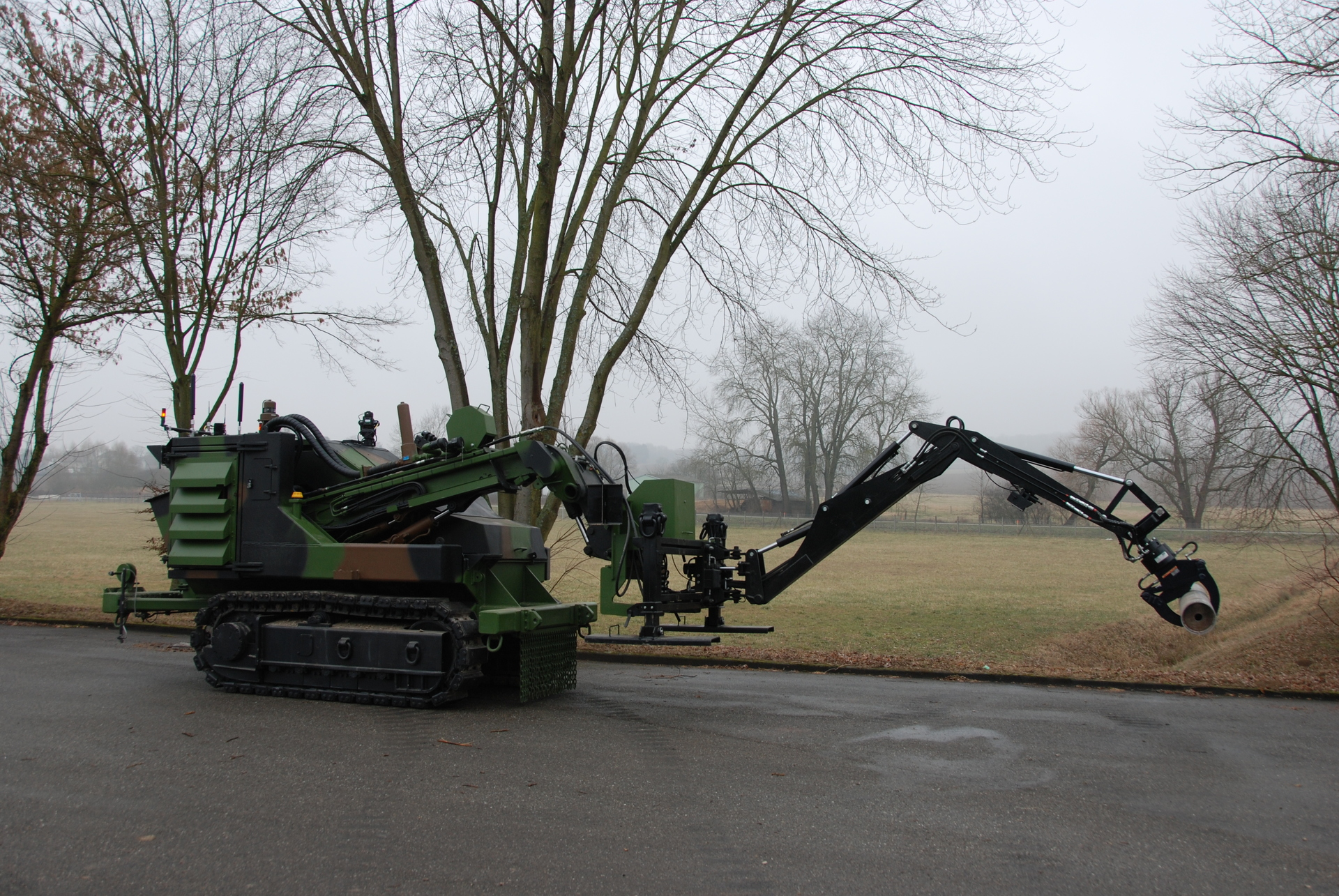

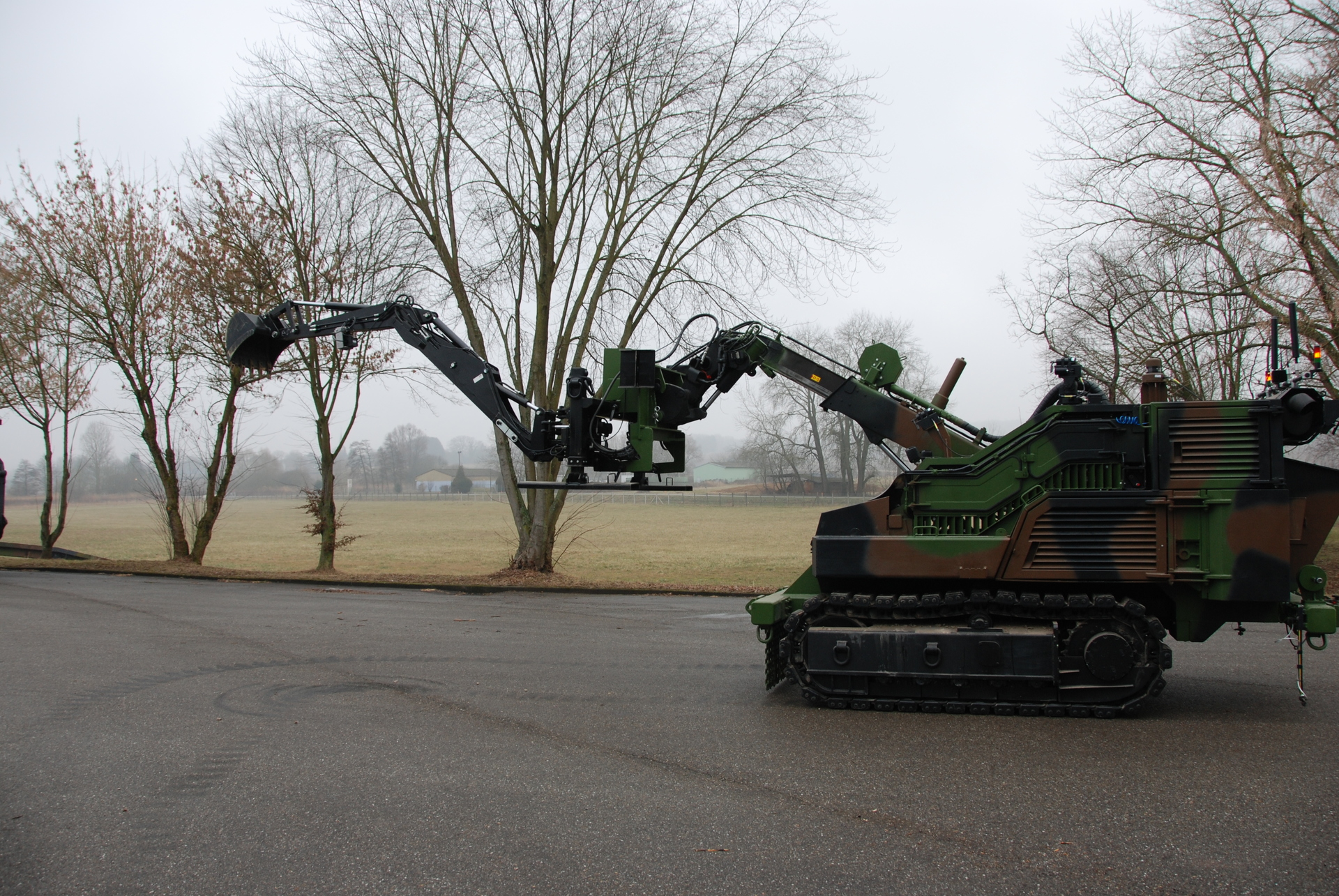

By utilising industry standard quick hitch systems, numerous construction tool attachments can be exchanged for the demining toolkits. The backhoe can be fitted onto the boom arm which provides a very versatile and far reaching tool with a standard scrape bucket or a grapple attached for extracting UXO which are difficult to access.

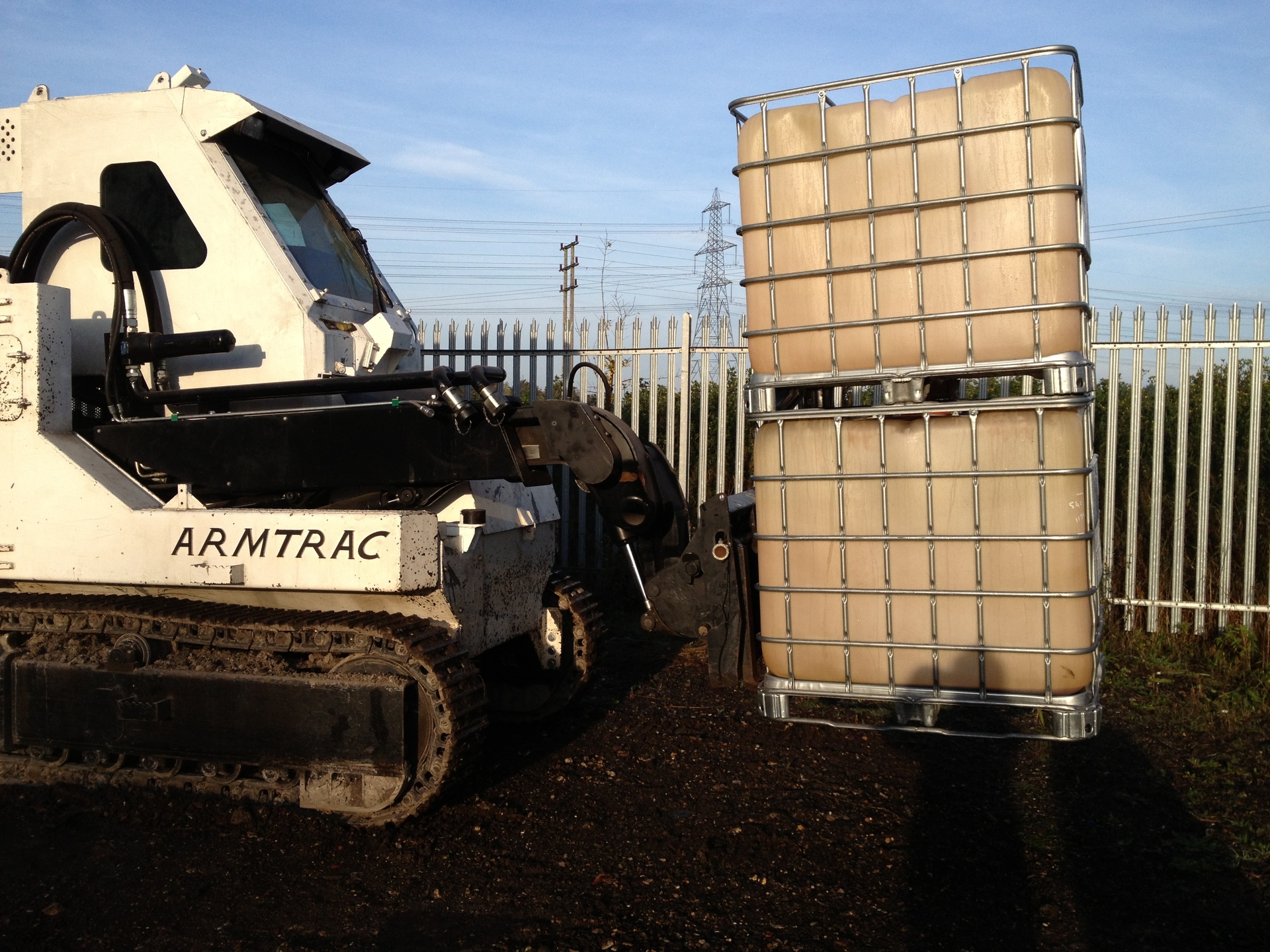

The quick hitch system will accommodate any standard construction tool such as buckets, dozer blades, fork lift tines or power grab, making the Armtrac 75T-230 an extremely versatile & useful machine in and out of high threat areas. The boom arm will lift up to 2.7 tons which makes the Armtrac 75T a powerful workhorse for a wide range of levelling, loading, lifting and construction roles as well as clearing mines, IEDs and UXO. This gives it a “second life” after its clearance role.
|Overall length||3766.00 mm|
|Length with attachment||5344.00 mm|
|Overall Width||2080.00 mm|
|Overall Hight||2308.00 mm|
|Fits in container||1|
Factory support data
|Factory support||Armtrac will 1. Provide training for operation and maintenance 2. Provide an engineer to maintain larger Armtrac fleets 3. Supply follow up spares quickly and efficiently.|
|Warranty||12 months standard|
|Additional equipment||Can be fitted with Armtrac C-IED Mine Roller System|
|Estimated quantity in use to date||8|
|Ground bearing pressure tracks||0.82 Kg/cm2|
|Hill climbing ability (max gradient degrees)||30.00 °|
|Rotation speed from||350.00 rpm|
|Rotation speed to||400.00 rpm|
|Clearance depth in varying terrain from||20.00 cm|
|Clearance depth in varying terrain to||35.00 cm|
|Working speed for light soil with medium vegetation||1700.00 m2/h|
|Working speed for medium soil with medium vegetation||780.00 m2/h|
|Working speed for heavy soil with dense vegetation||530.00 m2/h|
|Greatest remote controlled distance||1000.00 m|
|Mechanical tools / attachments|| |

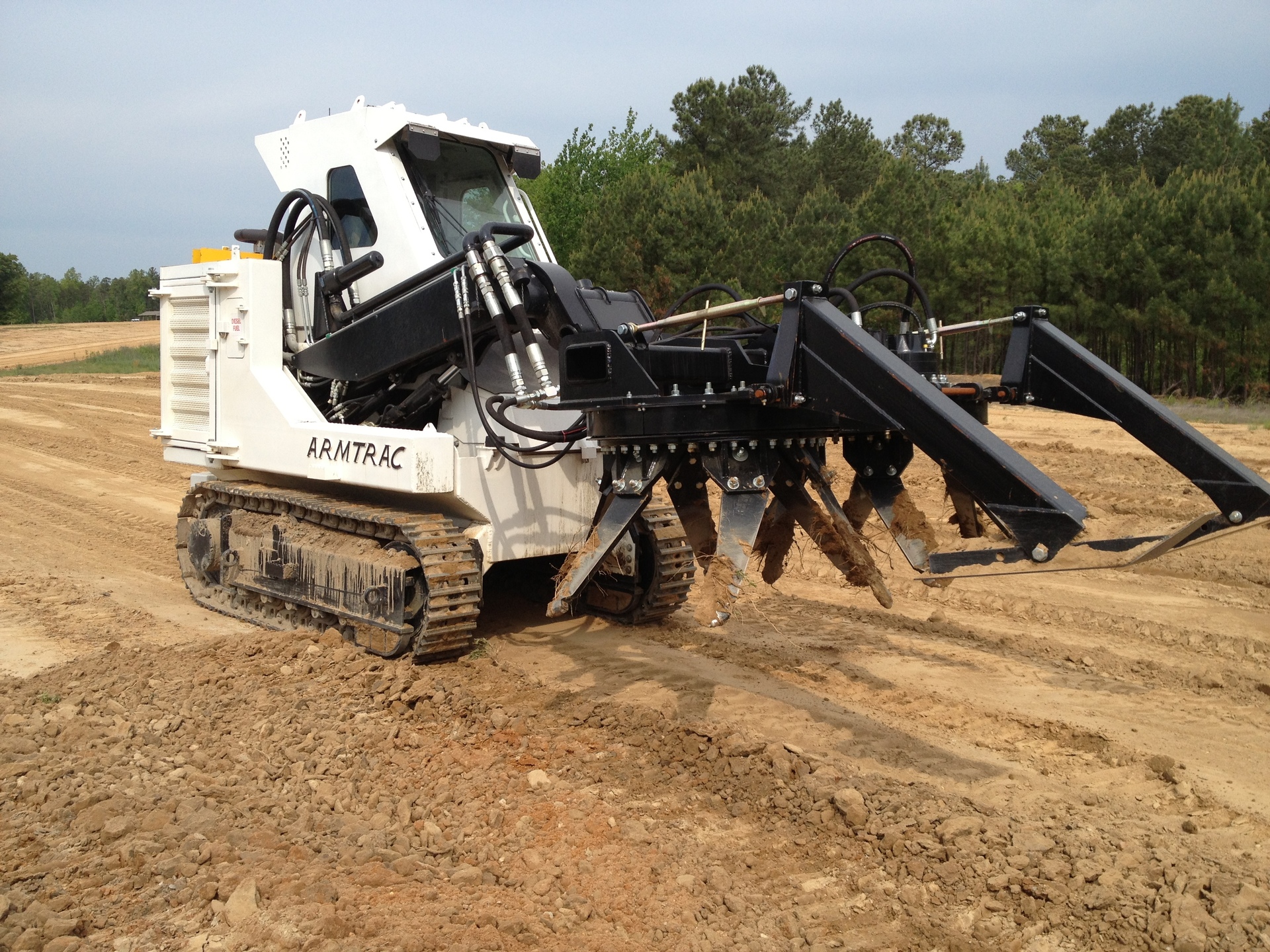

Tiller, Flail, Rotary Mine Comb, Robotic Arm with bucket, manipulator, grapple and strimmer, Detector (Metal and GPR), Front Loading Bucket, Dozer Blade
|Engine type / description||Deutz TCD2013L6 2v|
|Engine max power||258.00 hp|
|Fuel capacity||0.00 l|
|Fuel consumption||0.00 l/h|
|Cooling system||Water Cooling|
|Oil capacity||318.00 l|
Vehicle electrical system
|Battery voltage||24.00 Volt|
|Battery capacity||145.00 Ah|
