Overview
General description

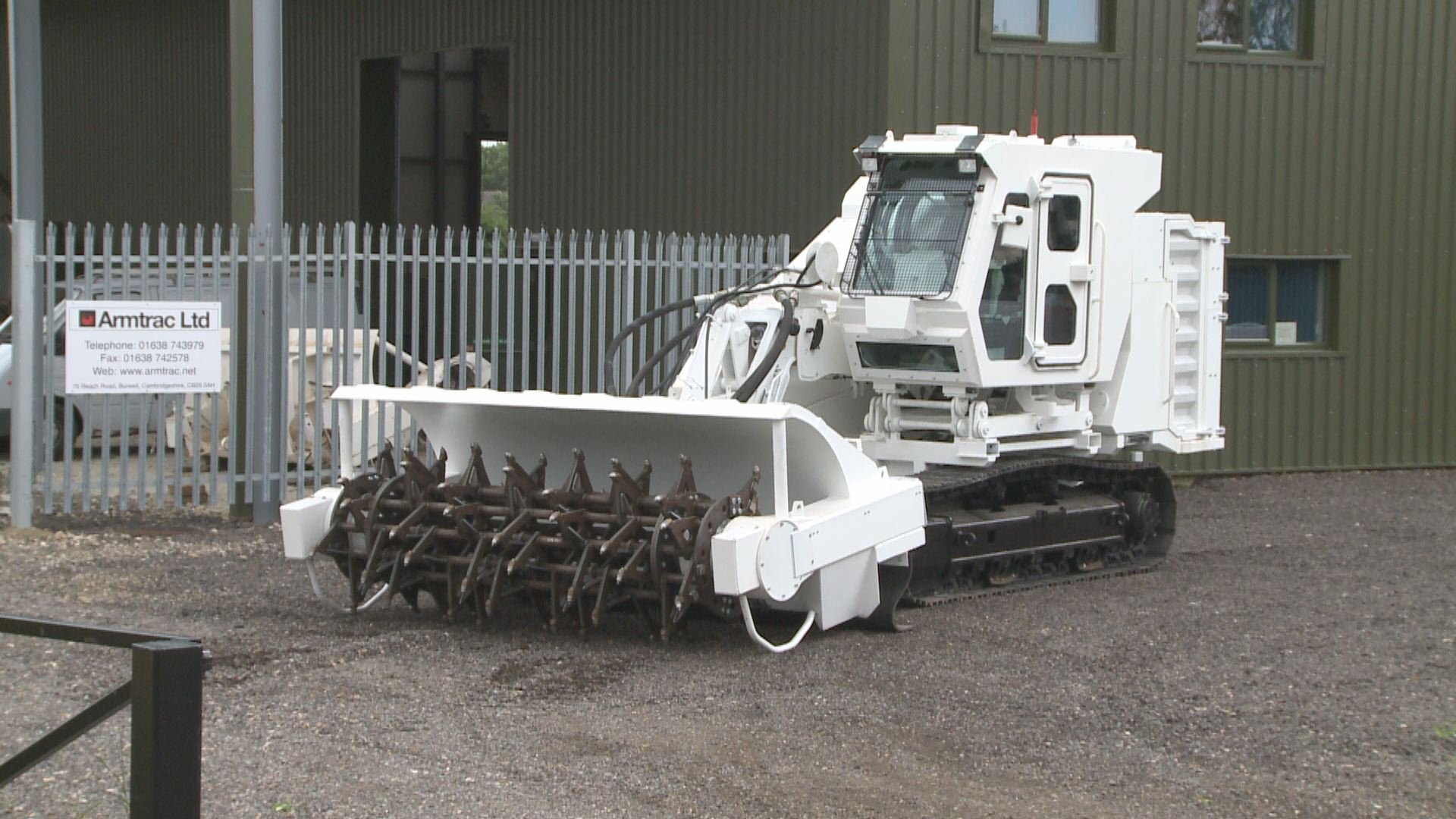

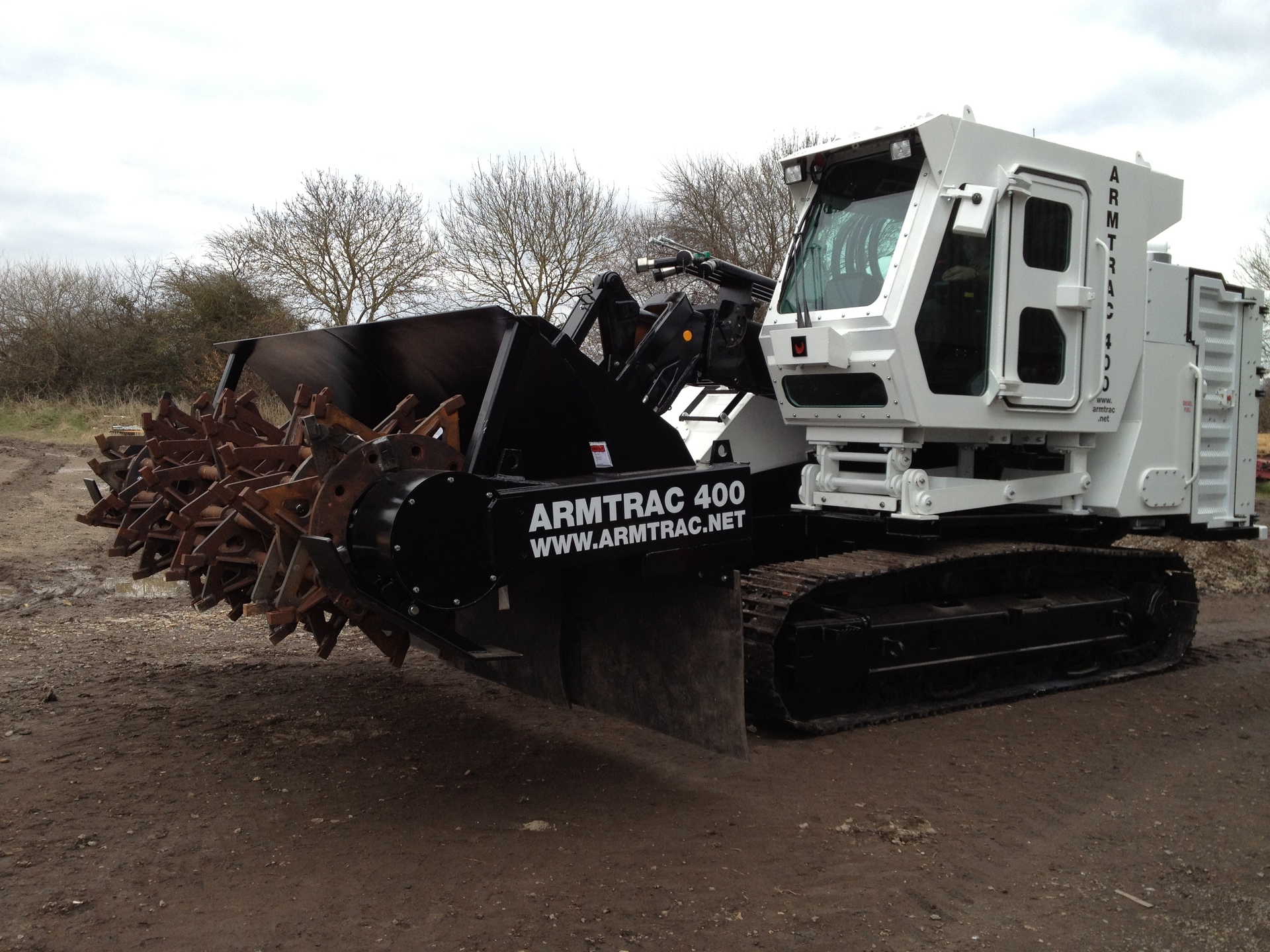

The Armtrac 400 is the largest and most powerful of the Armtrac range. With its hydraulically driven 3 meter Tiller rotor, it is capable of clearing 2,400 square meters per hour (depending on terrain & operator experience). With an effective tilling depth of 55cm the Armtrac 400 is designed to destroy & withstand 10kg Anti-Tank mines.
Working characteristics

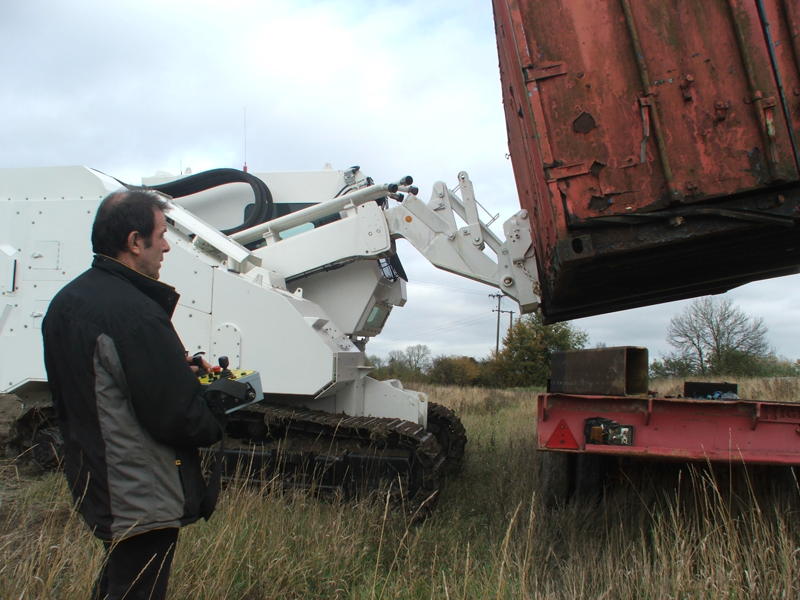

The A400 is fully remote controlled up to 1000 meters allowing the Operator to remain at a safe distance while still maintaining 100% control of all the machine’s functions, or alternatively with its fully armoured, sound proofed & air-conditioned cabin (which can withstand NATO Ball at point blank range), an Operator can maintain a detailed “bird’s eye” view of demining operations in complete comfort & safety. As an optional extra, we can add a unique “scissor-lift” cab mounting so that shocks are absorbed & the ride height can be adjusted for the best possible view. The Armtrac 400 has a Telescopic Boom to which different demining toolkits can be attached. This boom can be extended to clear mines and UXO in difficult locations such as on river banks and on inclines, while remaining completely stationary. This is a unique feature to the Armtrac tracked machines. A variety of toolkits are available for demining and clearing UXO. As well as a tiller and flail, the Armtrac Mine Comb or screener/segregator can extract buried mines and UXO down to 50 cms. When the Armtrac Sifter is fitted to the rear of the machine, this extracts items & potentially missed ordnance down to 50 cms which provides a comprehensive quality assurance tool when fitted together with a front mounted tiller or flail.
Specifications
Dimensional data
| Overall length | 5550 mm |
| Length with attachment | 8037 mm |
| Overall Width | 2795 mm |
| Overall Hight | 3395 mm |
| Fits in container | 1 |
Factory support data
| Factory support | Armtrac will 1. Provide training for operation and maintenance 2. Provide an engineer to maintain larger Armtrac fleets 3. Provide an operator/service engineer for rental machines 4. Supply follow up spares quickly and efficiently. |
Price
| Base price | 000 € |
| Reduction for higher quantity | |
| Possible to rent | 1 |
Other
| Estimated quantity in use to date | 15 |
Operational data
| Tracks | 1 |
| Ground bearing pressure tracks | 0.46 Kg/cm2 |
| Hill climbing ability (max gradient degrees) | 25 ° |
| Rotation speed from | 350 rpm |
| Rotation speed to | 350 rpm |
| Clearance depth in varying terrain from | 20 cm |
| Clearance depth in varying terrain to | 35 cm |
| Working speed for light soil with medium vegetation | 2100 m2/h |
| Working speed for medium soil with medium vegetation | 1700 m2/h |
| Working speed for heavy soil with dense vegetation | 1200 m2/h |
| Control of clearance depth | Depth Control |
| Armor | Armox 440 |
| Greatest remote controlled distance | 1000 m |
| Mechanical tools / attachments | Tiller Flail Rotary Mine Comb Backhoe/Excavator Mine Plough Sifter Front Loading Bucket Fork Lift Tines Dozer Blade |
Engine specifications
| Engine type / description | Duetz BF6M |
| Engine max power | 425 hp |
| Fuel capacity | 470 l |
| Fuel consumption | 40 l/h |
| Cooling system | Water |
| Oil capacity | 800 l |
| Connectivity | Hydraulic |
Vehicle electrical system
| Battery voltage | 24 Volt |
| Battery capacity | 145 Ah |
