Overview
General description

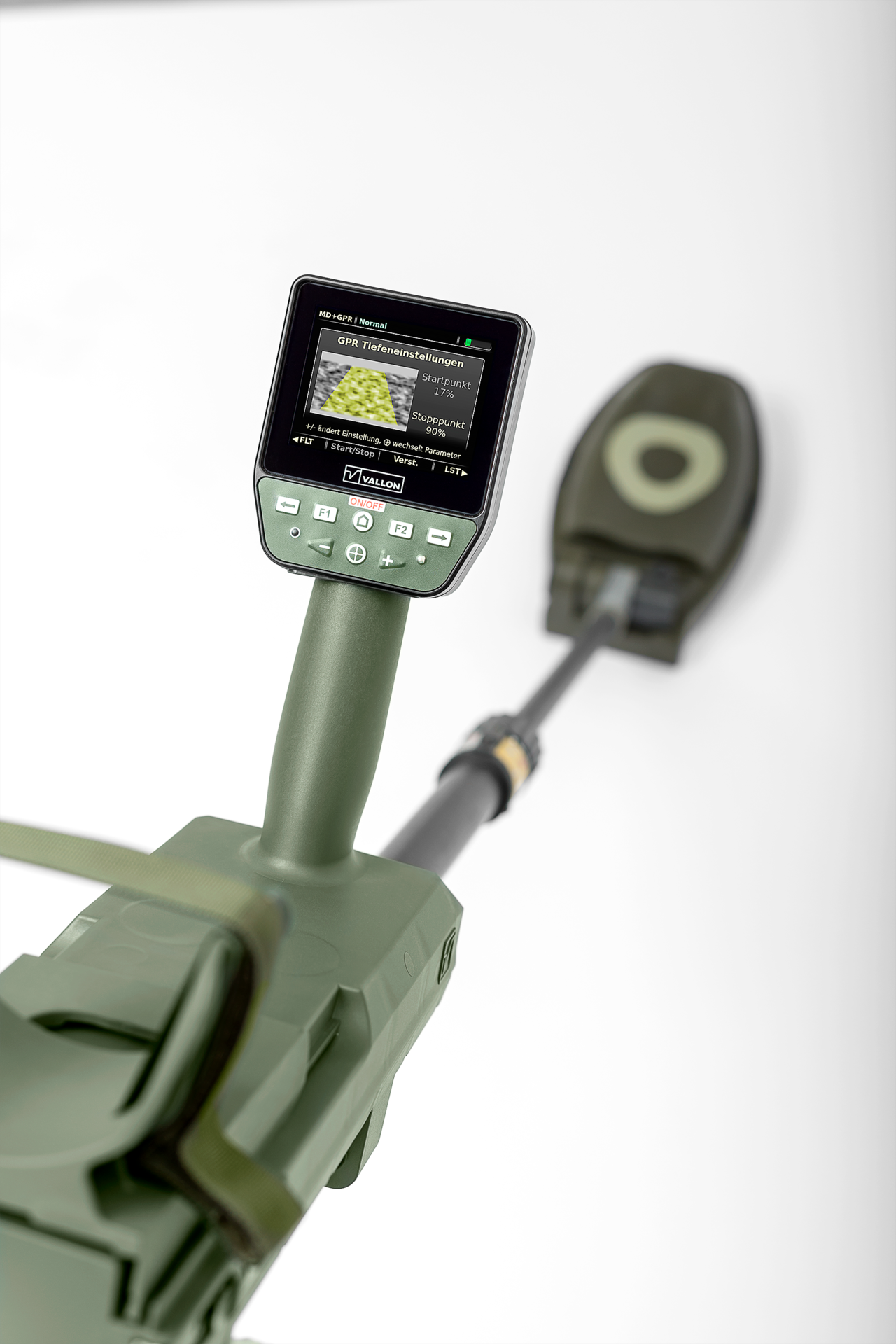

VMR3G “Minehound” – Dual-Sensor Detector
Dual-Sensor Detector with Graphic Display for Metal and Metal-Free Objects
Working characteristics
Dual-sensor search head with metal detector (MD) and ground-penetrating radar (GPR)
Integrated graphic display for simplified operation
Mechanical design with high-quality carbon telescoping carrying bar
High sensitivity for high-efficiency soil compensation
Detection of minimum metal and metal-free objects as well as improvised explosive devices (IEDs)
Easily noticeable alarm indication (audio/visual/vibration)
Device settings available in numerous local languages
Specifications
Radio, audio, visual, sensitivity data
| Transmission frequency | 0.00 kHz |
| Visual display | Visual graphic display |
Power supply data
| Battery | VAP3 lithium polymer rechargeable battery |
| Low battery alert | 1 |
| Rechargeable | 1 |
| Operating time | 7.50 hours |
| Operating time information | Tolerance ± 10 % |
| Battery charger provided | 1 |
Dimensional data
| Length | 92.00 mm |
| Weight | 4.20 kg |
| Search head size | 315.00 mm |
| Shape | oval |

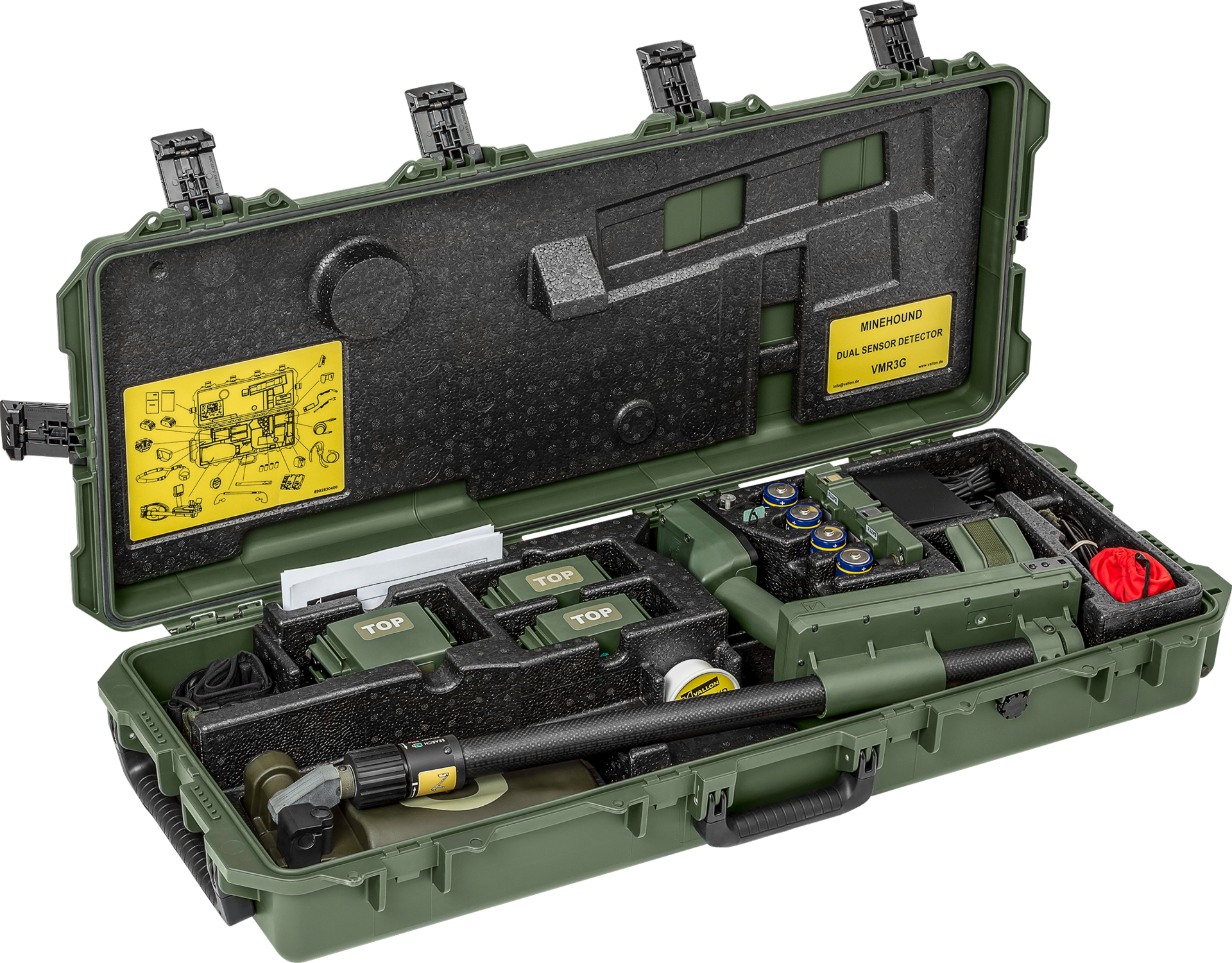

| Transport case provided | 1 |
| Transport case weight | 6.94 kg |
| Transport case weight info | Tolerance ± 10 % |
Factory support data
| Factory support | Vallon GmbH |
| Humidity (limitations) | MIL STD 810F |
| Temperature limitations | -31 °C to +63 °C |
Price
| Base price | 0.00 € |
