General description

VMX10 – Large Loop Metal Detector

Large Loop Metal Detector for Detecting UXO

Working characteristics

Able to be carried and operated by one or two people

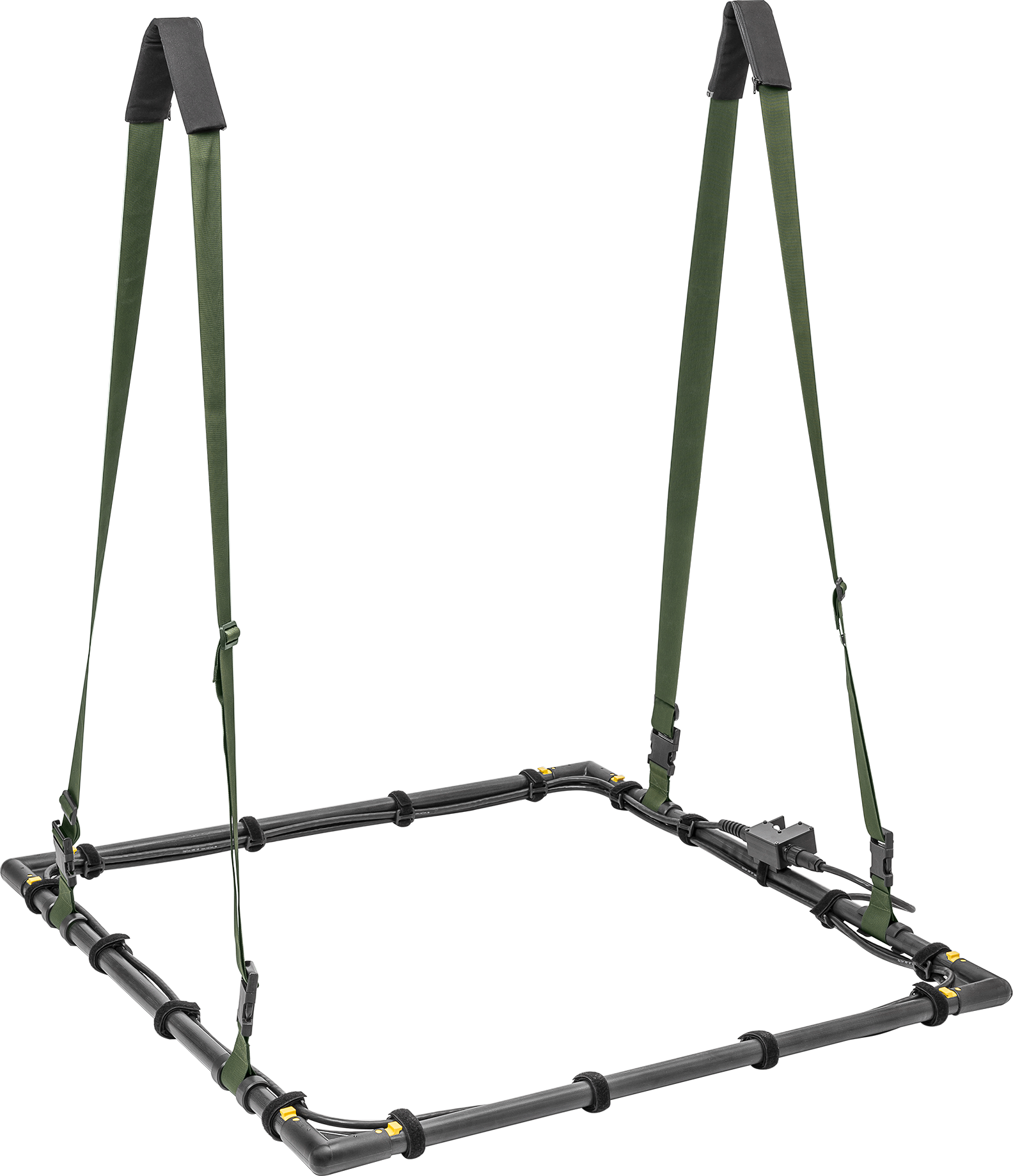

Standard configuration with 1 x 1 m, 1 x 2 m or 2 x 2 m coil sizes – Customer-specific configuration available

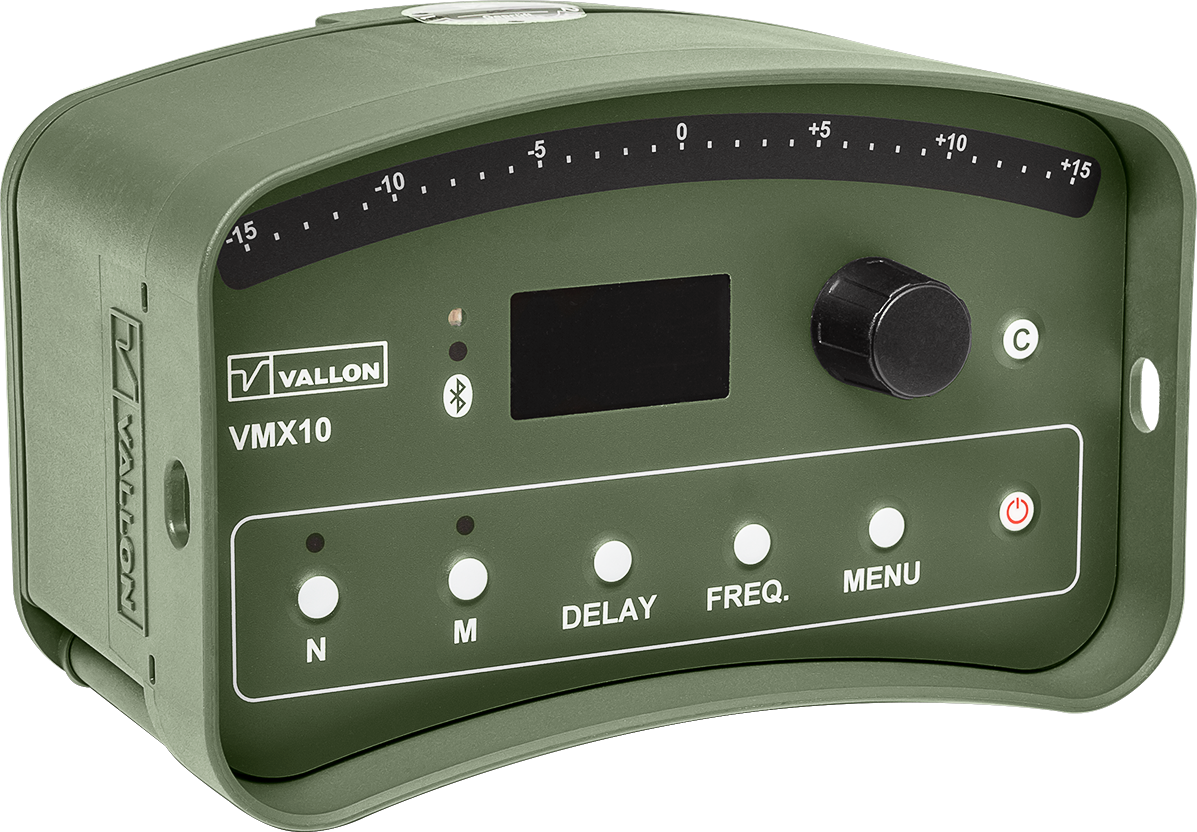

Electronics unit with OLED display and high comfort

Highly efficient soil compensation

Selection of 14 measuring ranges for object-based suppression of sources of interference

Optionally available VALLON software for data acquisition with associated hardware

Optionally available wheel set for search tasks covering wide areas


Radio, audio, visual, sensitivity data

Transmission frequency 0.00 kHz

Power supply data

Battery VAP3 7.4 V/5.4 Ah lithium polymer rechargeable battery
Low battery alert 1
Rechargeable 1
Operating time 20.00 hours
Operating time information 8 - 22 hours
Battery charger provided 1

Dimensional data

Length 2000.00 mm
Weight 22.40 kg
Search head size 2000.00 mm
Shape rectangular

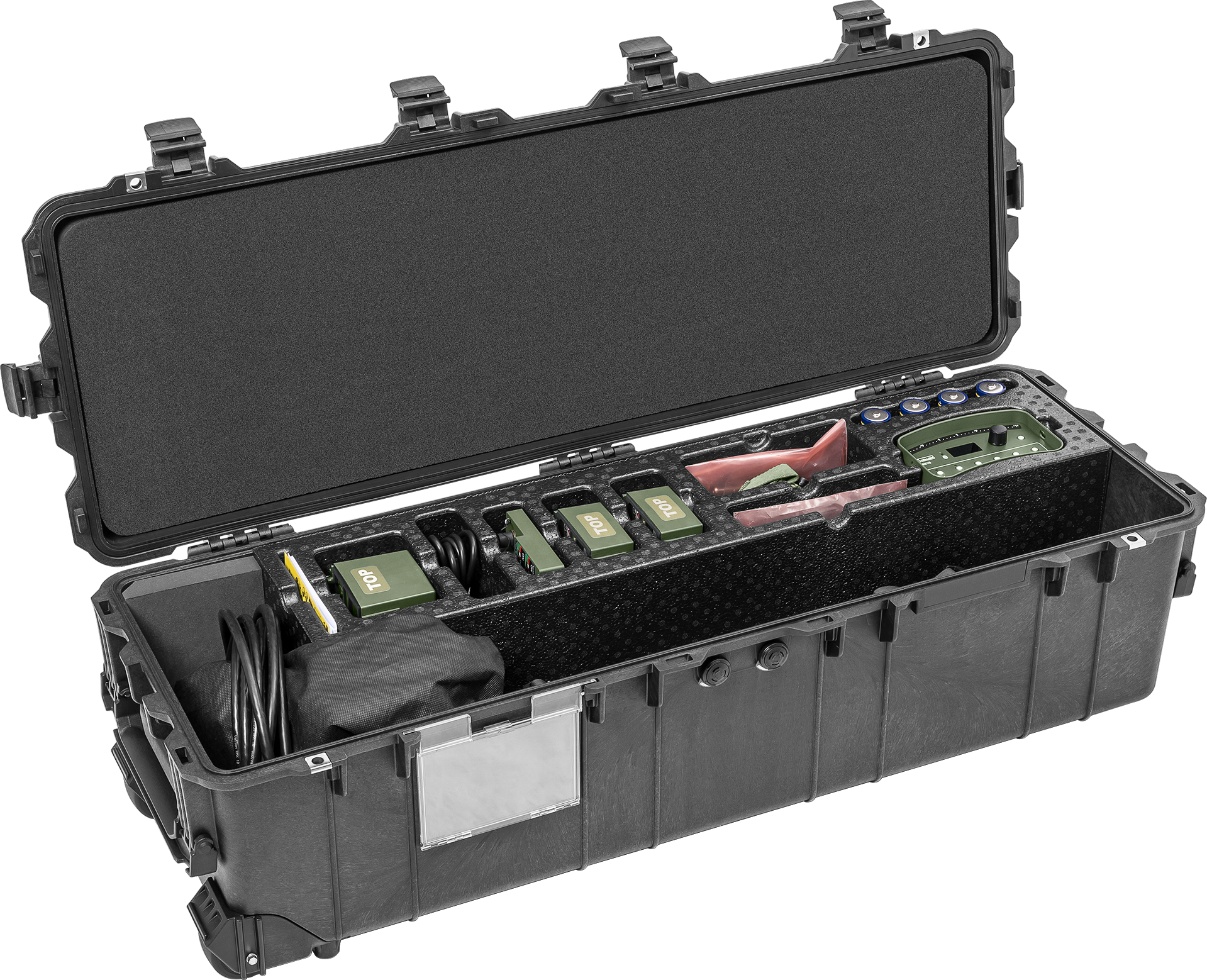

Transport case provided 1
Transport case weight 10.12 kg

Factory support data

Factory support Vallon GmbH
Warranty 12 months
Water resistant 1
Temperature limitations IP54, -31 °C to +63 °C


Base price 0.00 €
