Overview
General description

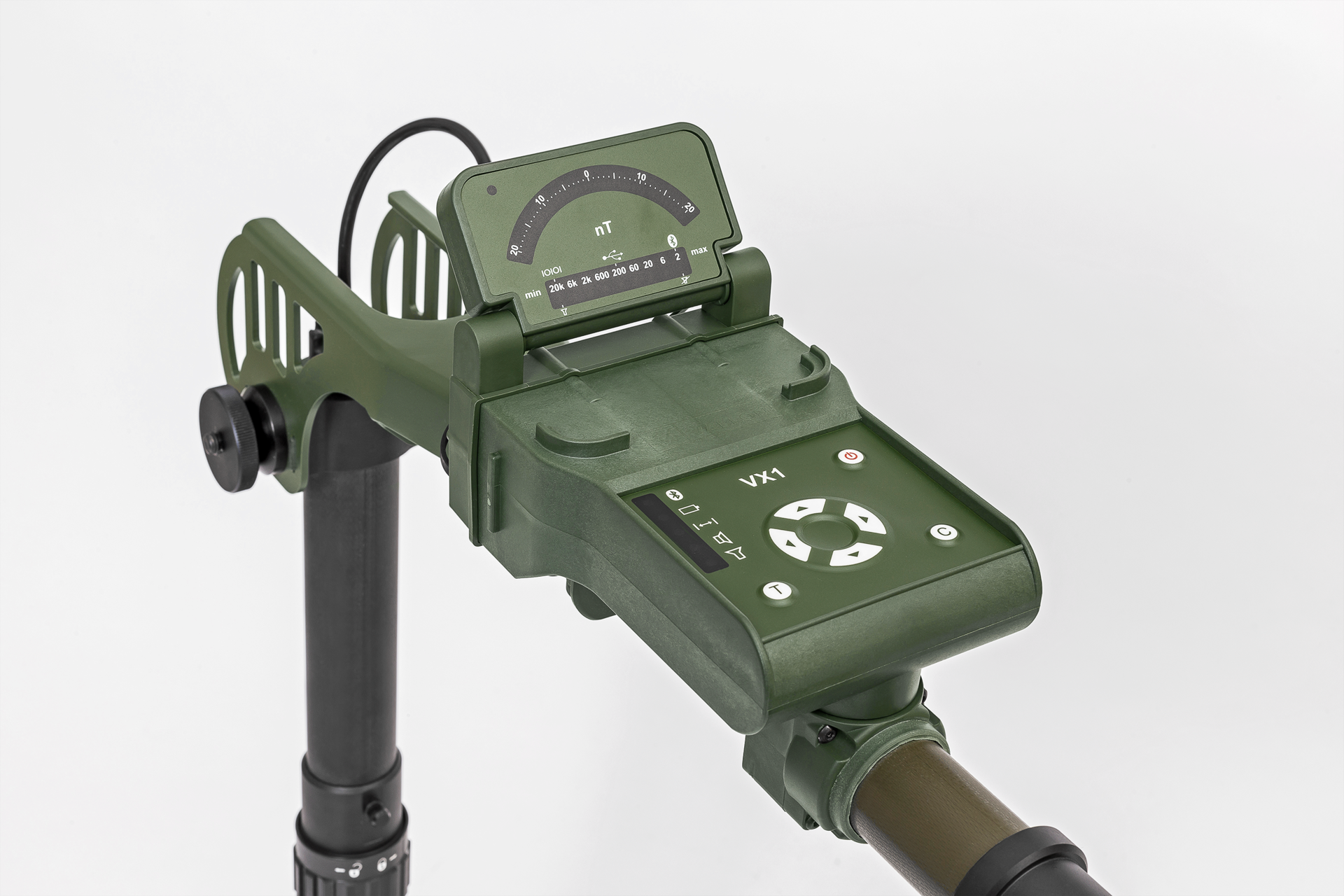

VX1 – Magnetometer Set "Land"
Modular Magnetometer System for Use on Land
Working characteristics
Modular magnetometer system for UXO detection down to great depths
Detection indication using polarity-dependent LED bar graph and audio signal
No sensor adjustment required
Interfaces for data acquisition: USB, Bluetooth® and serial
Smart data analysis with VALLON software solutions
Detachable digital probe VSM for flexible use in all VALLON multichannel systems
Specifications
Radio, audio, visual, sensitivity data
| Transmission frequency | 0.00 kHz |
Power supply data
| Battery | 4 x Mono LR20 1.5 V alkaline |
| Low battery alert | 1 |
| Operating time | 100.00 hours |
| Operating time information | depending on operation mode and battery brand |
| Battery charger provided | 1 |
| Battery charger information | option |
Dimensional data
| Length | 770.00 mm |
| Weight | 9.20 kg |
| Search head size | 32.00 mm |
| Shape | probe diameter 32 mm |

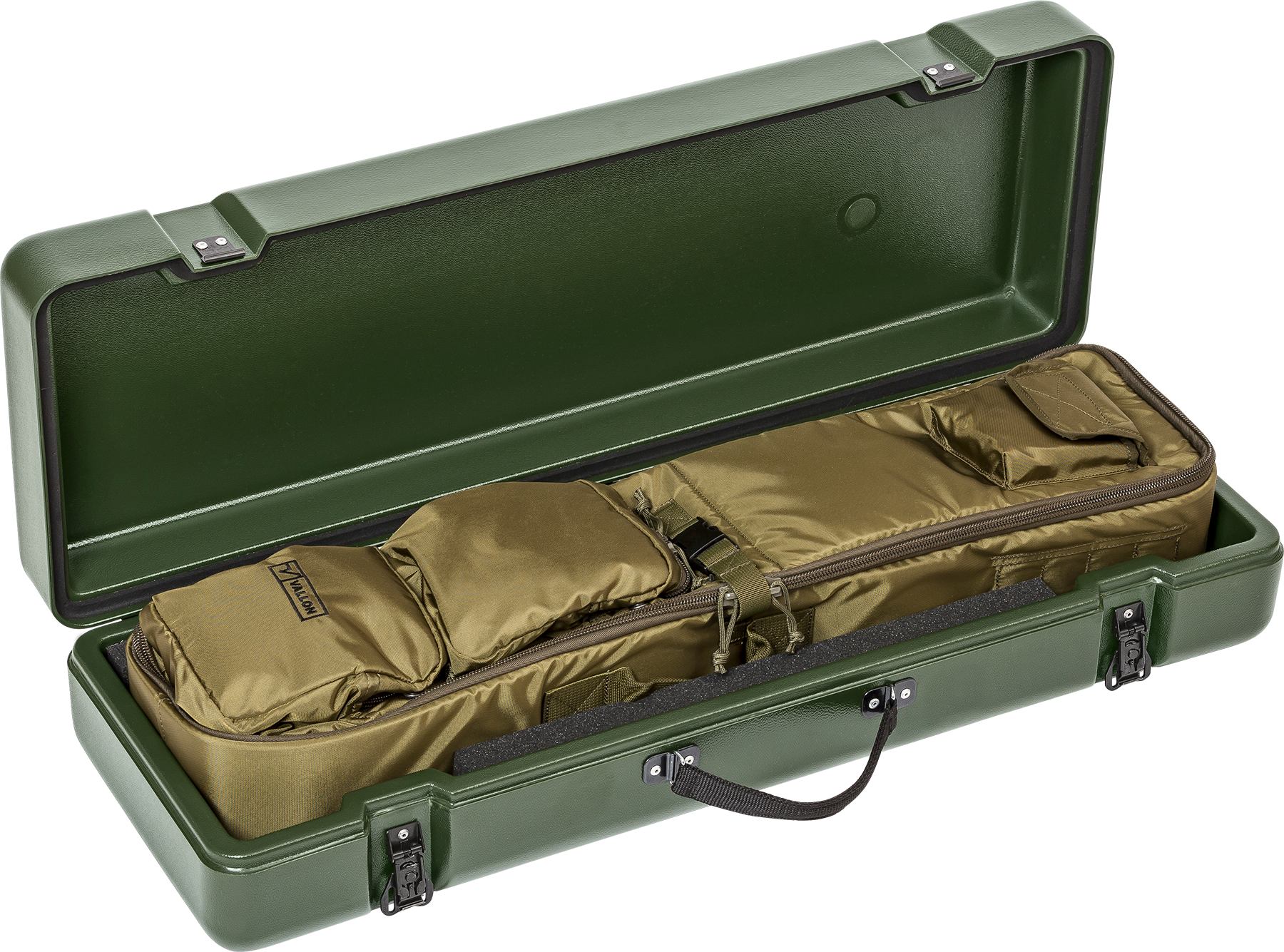

| Transport case provided | 1 |
| Transport case weight | 4.55 kg |
Factory support data
| Factory support | Vallon GmbH |
| Warranty | 12 months |
Price
| Base price | 0.00 € |
Other
| Other models | Variants available for land & borehole detection, additional data recording and evaluation |
