Overview
General description

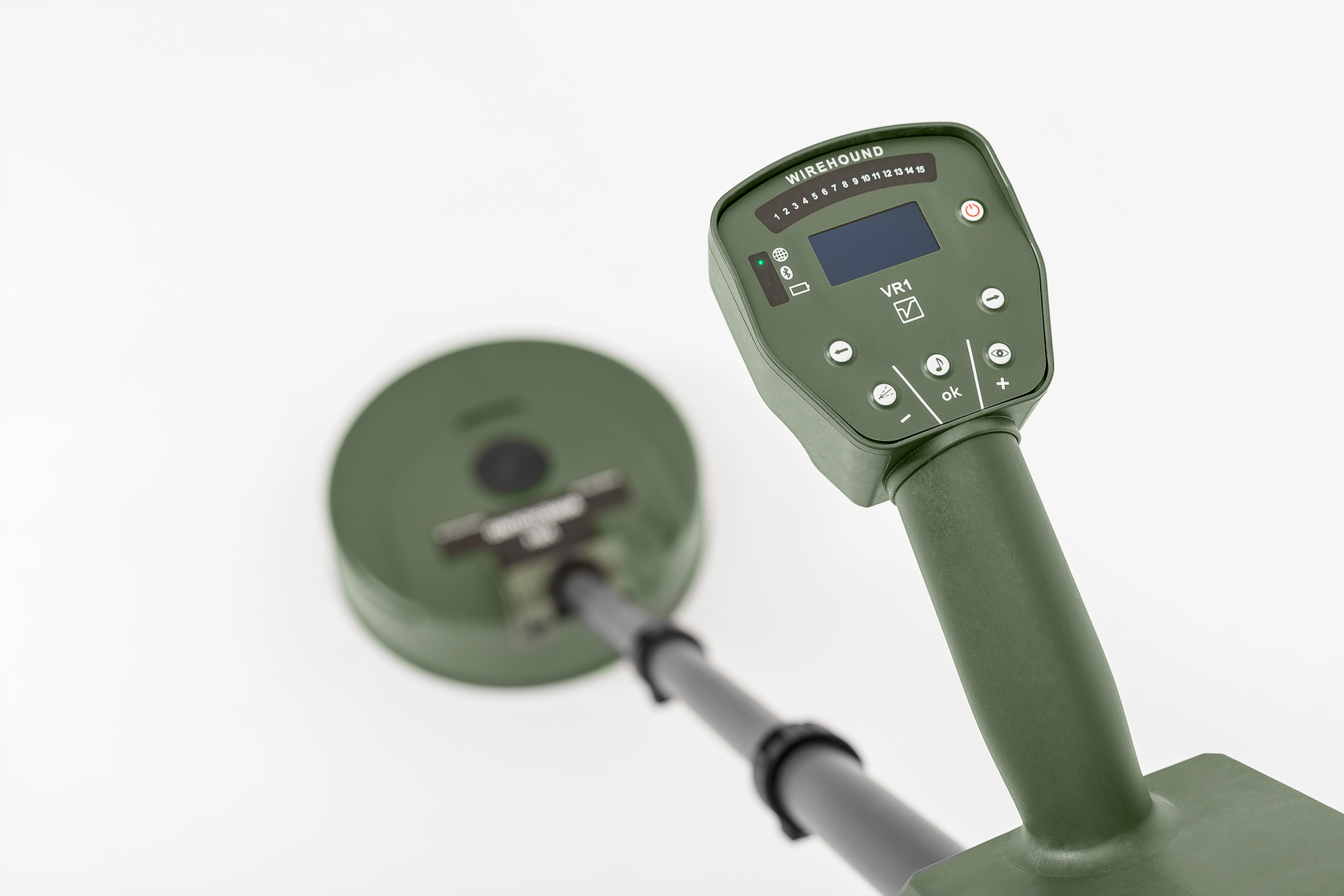

VR1 “Wirehound” – Cable Detector
Cable Detector with OLED Display for Cables and Wires
Working characteristics
Search head with ground-penetrating radar (GPR)
Detection of cables and wires regardless of their orientation
High sensitivity to detect unenergized wires with a length of 10 cm or more
Integrated OLED display for intuitive operation and selection of various languages
Easily noticeable alarm indication (audio/visual/vibration)
The Cable Detector VR1 "Wirehound" uses ground-penetrating radar and has been developed specifically for finding explosive devices and their components. These include the cables and wires typically used to activate IEDs.
Specifications
Radio, audio, visual, sensitivity data
| Transmission frequency | 0.00 kHz |
| Visual display | OLED display |
Power supply data
| Battery | VAP3 7.4 V/5.4 Ah lithium polymer rechargeable battery |
| Low battery alert | 1 |
| Rechargeable | 1 |
| Operating time | 10.00 hours |
| Battery charger provided | 1 |
| Battery charger information | Special charger NT-VAP3 part of the set VR1 |
Dimensional data
| Length | 920.00 mm |
| Weight | 3.70 kg |
| Search head size | 300.00 mm |
| Shape | round |

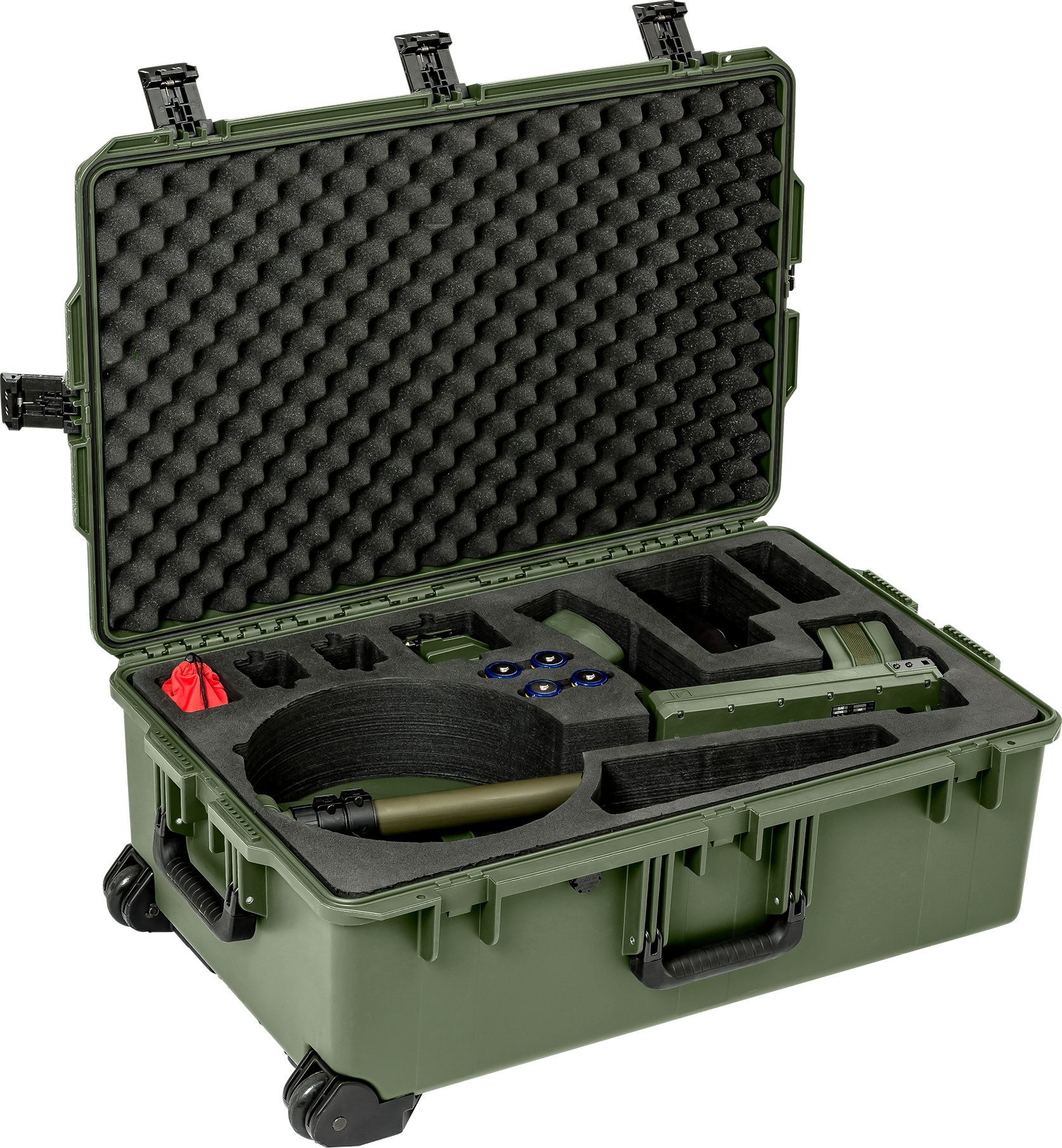

| Transport case provided | 1 |
| Transport case weight | 9.54 kg |
| Transport case weight info | empty case with inserts |
Factory support data
| Factory support | Vallon GmbH |
| Warranty | 12 months |
| Humidity (limitations) | MIL STD 810F |
| Temperature limitations | MIL STD 810F, -31° C to +63° C |
Price
| Base price | 0.00 € |
