General description

VMH3CS – Compact Metal Detector

Metal Detector for Mine Clearing Projects

Working characteristics

Optimized ergonomics for long-term operation in military demining and humanitarian mine clearance

High sensitivity for high-efficiency soil compensation

Easily noticeable metal alarm indication (audio/visual/vibration)

Pinpoint button for a higher degree of location detection accuracy


Radio, audio, visual, sensitivity data

Transmission frequency 0.00 kHz
Visual display audio/visual/vibration alarm indication

Power supply data

Battery 3 x Mono LR20 1.5 V alkaline battery / 3 x Mono HR20 1.2 V NiMH rechargeable option
Low battery alert 1
Rechargeable 1
Operating time 28.00 hours
Operating time information depending on battery brand and operation mode
Battery charger provided 1
Battery charger information option

Dimensional data

Length 1260.00 mm
Weight 2.50 kg
Search head size 308.00 mm
Shape oval
Transport case information option
Transport case weight 5.20 kg
Transport case weight info empty case

Factory support data

Factory support Vallon GmbH
Warranty 12 months
Humidity (limitations) MIL STD 810F
Temperature limitations -31° C to +63° C opterating temperature


Base price 0.00 €


Additional equipment options: 60 cm searchhead, stick probe, hard case, head phone, battery charger

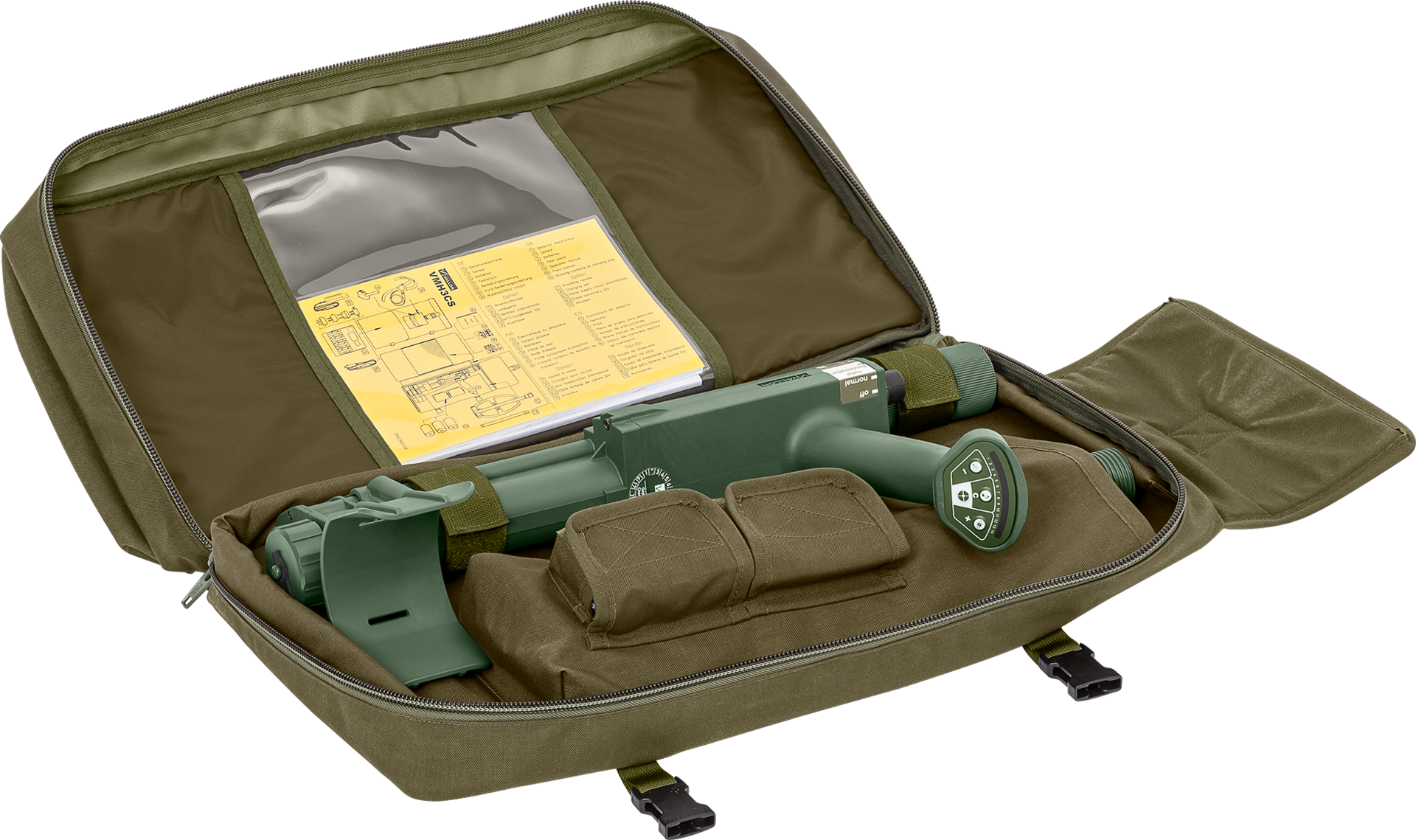

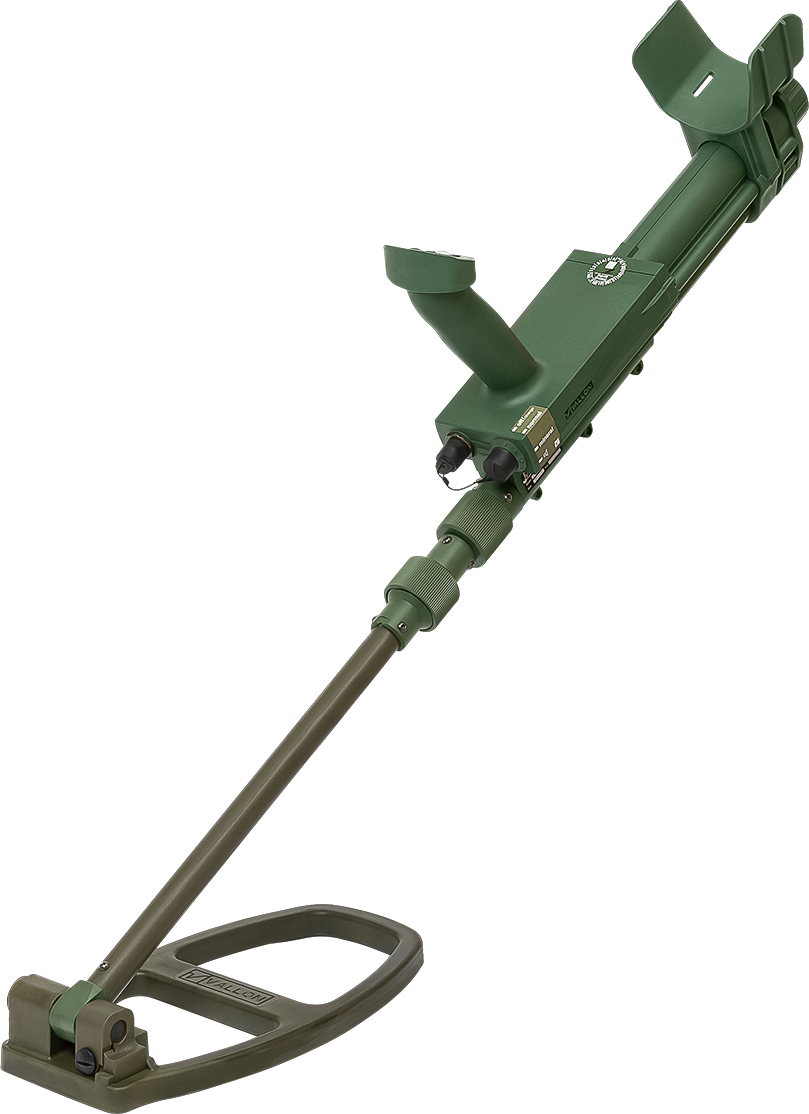

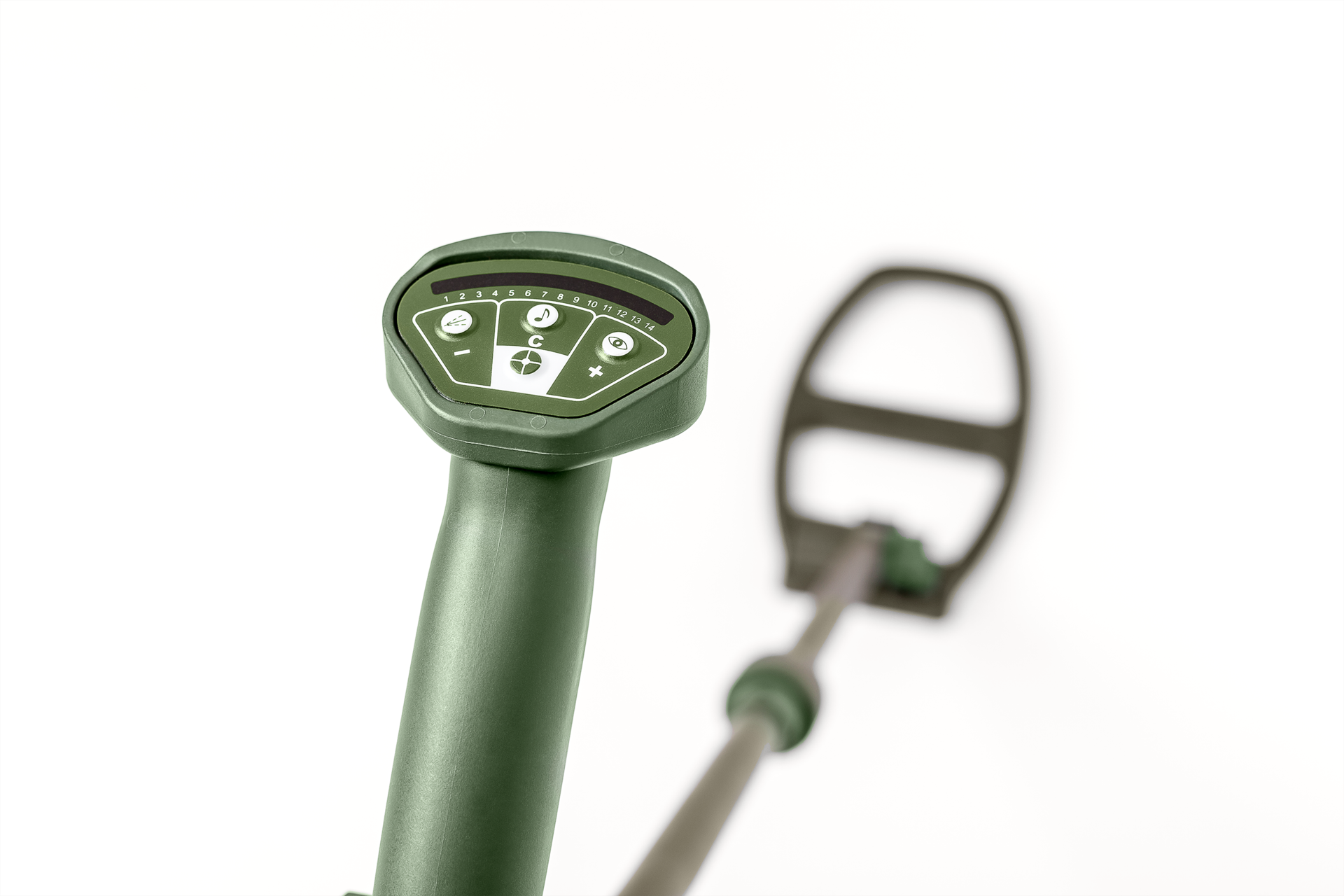

vmh3cs detail 01 vmh3cs tasche 01 vmh3cs 02
