Overview
General description

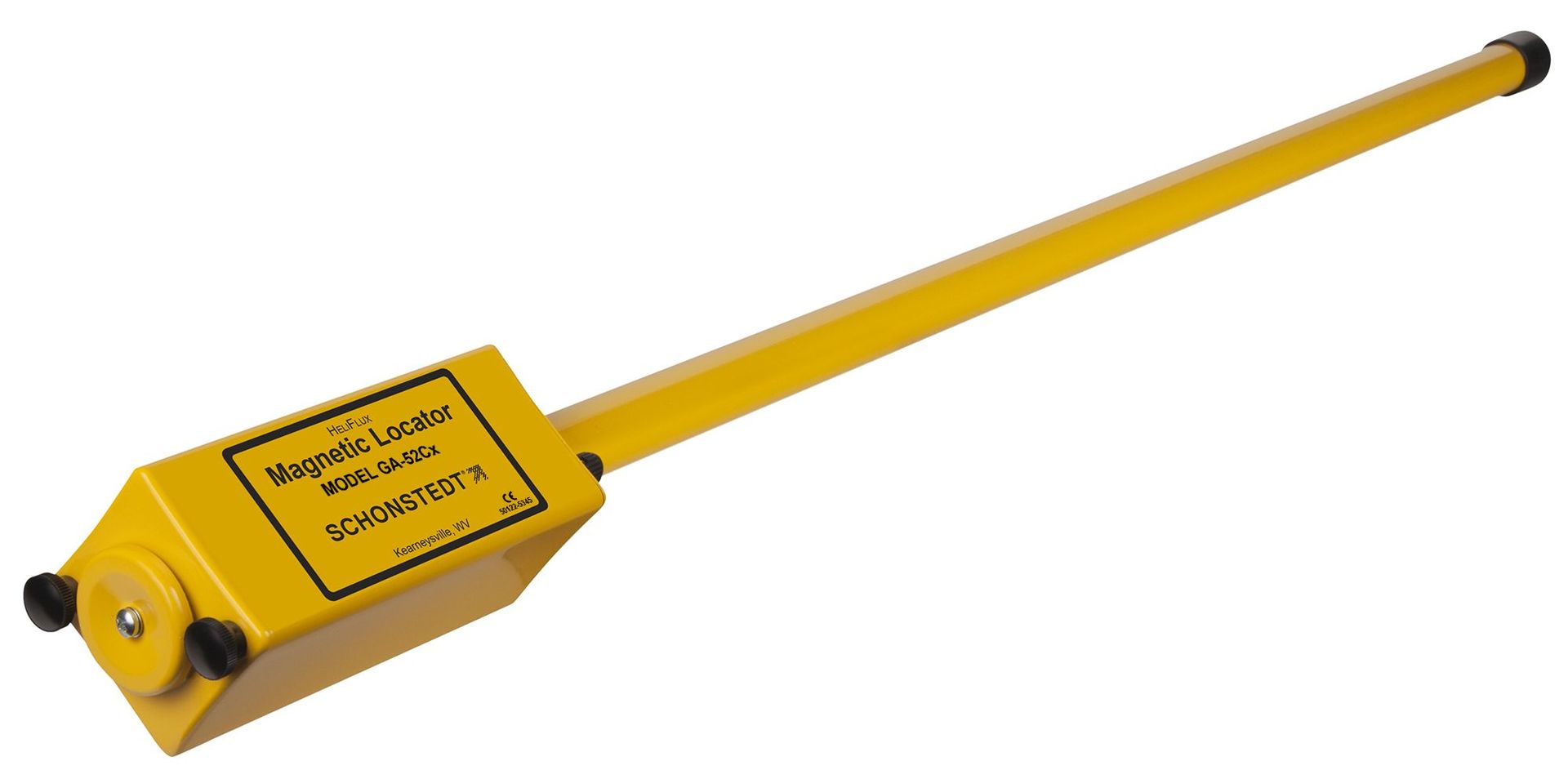

The GA-52Cx Locator detects the magnetic field of iron and steel objects. Designed for one-hand operations, the On/Off-Sensitivity and Volume controls are located on the underside of the cover. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability.Working characteristics
Clear, sharp, detection signal pinpoints the target Ease of operation reduces search time Modular construction and high performance components Weather protected controls Rugged, lightweight case Innovative HeliFlux® sensors No response to aluminum, brass, or copper One Year Warranty for UXO useSpecifications
Radio, audio, visual, sensitivity data
| Audio output | Tone frequency varies with gradient field intensity |
| Sensitive adjustment | 1 |
Power supply data
| Battery | Two 9-Volt Batteries |
Dimensional data
| Length | 107 mm |
| Weight | 1.13 kg |
| Search head size | 32 mm |
| Shape | Stick |
| Transport case provided | 1 |
| Transport case information | Rugged hard-case included, 112 cm x 15 cm x 13 cm |
| Transport case weight | 1.2 kg |
Factory support data
| Factory support | Our customer support department is committed to providing prompt response and 100% satisfaction. Most Schonstedt locators returned to the factory for a paid repair will be completely refurbished. Not only will it look like new, it will operate within i |
| Warranty | 1 Year Warranty for UXO & EOD |
| Temperature limitations | Operating Temps: -25 C to 60 C |
Price
| Base price | 955 € |
| Reduction for higher quantity | Call 888-367-7014 or email schonstedt.info@spx.com for additional pricing. |
Other
| Additional equipment | Magnetic Locators, Pipe & Cable Locators |
| Other models | GA-52Cx-Rc (rechargeable batteries), GA-72Cd, GA-72Cd-Rc, GA-72Cd-ML |
