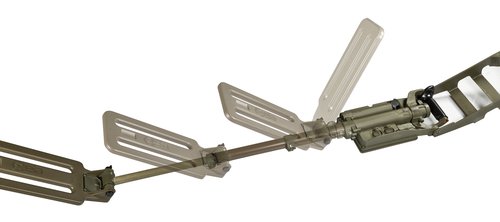

The CEIA CMD is a high-sensitivity Compact Metal Detector designed to detect metal and minimum-metal content targets in conductive and non-conductive soils, including laterite and magnetite. The Metal Detector comprises a search head, a control unit, a telescopic pole and an elbow support all jointed together in a one-piece foldable design that allows the CEIA CMD to be operational in a very short time and to be carried easily everywhere.

The CEIA CMD does not require any manual calibration; in addition, optimum sensitivity is ensured over all types of terrain due to CEIA's Exclusive Automatic Soil Compensation System. Localisation of metal objects is optimised by an Acoustic Modulation pinpointing system aided by a visual LED bar graph, which allows the position of the detected mass to be identified accurately.


Visual display LED display
Sensitive adjustment 1
Ground balance 1

Battery 2 × ANSI Standard, type C; 2 × 1.5 V alkaline (LR14); 2 × 1.2 V Ni-MH rechargeable
Low battery alert 1
Rechargeable 1
Operating time 8 hours
Battery charger provided 1
Battery charger information integrated - The detector is equipped with a built-in Ni-MH battery charger which allows the batteries to be recharged (in 3 hours max) without the need to extract them from the unit.

Length 1290 mm
Weight 2.1 kg
Search head size 350 mm
Shape rectangular 350 mm x 140 mm
Transport case provided 1
Transport case information soft trensport bag - rigid transport case as option
Transport case weight 0.54 kg
Transport case weight info soft bag -

Factory support worldwide support
Warranty 1 year
Humidity (limitations) no limitations - IP68 (IEC 529)
Water resistant 1
Temperature limitations Operational: -46 to +70°C; Storage: -55 to +85°C

Additional equipment Optional accessories include the Test Pieces Set, Technical Maintenance Tool Kit, Vibration Signalling Device, Wireless Earphone Kit, Field Programming Key and Helmet Remote Display Unit.
Detectors systems in use to date 50000+
Other models CMD UXO Version This version, specifically designed for UXO clearance operations, features a broader range of sensitivity. While maintaining the same high detection capabilities of the standard version for low metal content targets, the CMD UXO version a
